Question: Problem # 1 ( 2 5 points ) In the following circuit: 1 ) Find the mesh current equations for ( mathrm

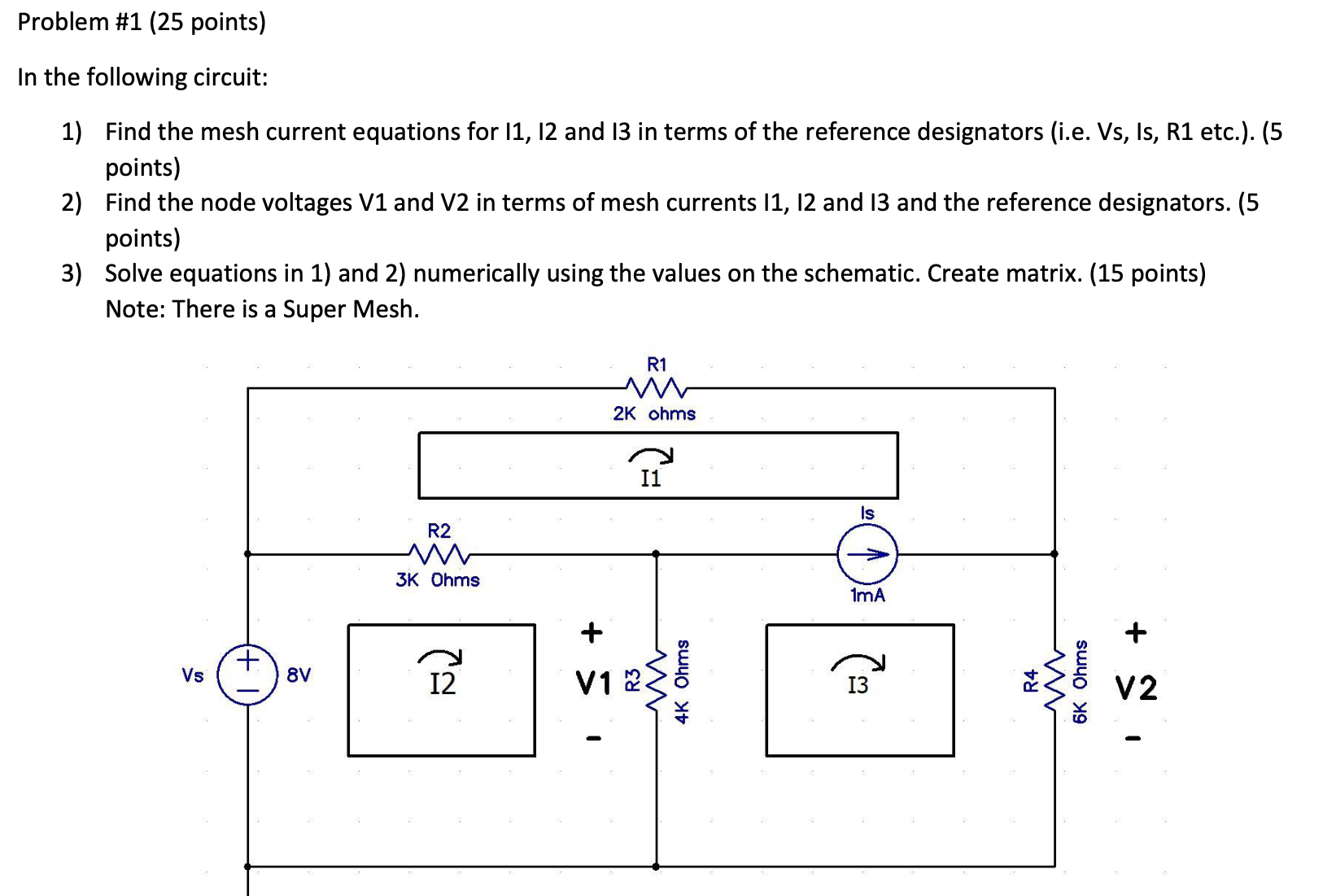

Problem \#1(25 points)
In the following circuit:
1) Find the mesh current equations for \(\mathrm{I}1,\mathrm{I}2\) and I 3 in terms of the reference designators (i.e. Vs, Is, R1 etc.).(5 points)
2) Find the node voltages V1 and V2 in terms of mesh currents I1, I2 and I3 and the reference designators. (5 points)
3) Solve equations in 1) and 2) numerically using the values on the schematic. Create matrix. (15 points) Note: There is a Super Mesh.
Problem \ # 1 ( 2 5 points ) In the following
