Question: Problem 1 . ( 2 5 points ) Starting from rest when weight L is on the ground, the gear A , rotates clockwise with

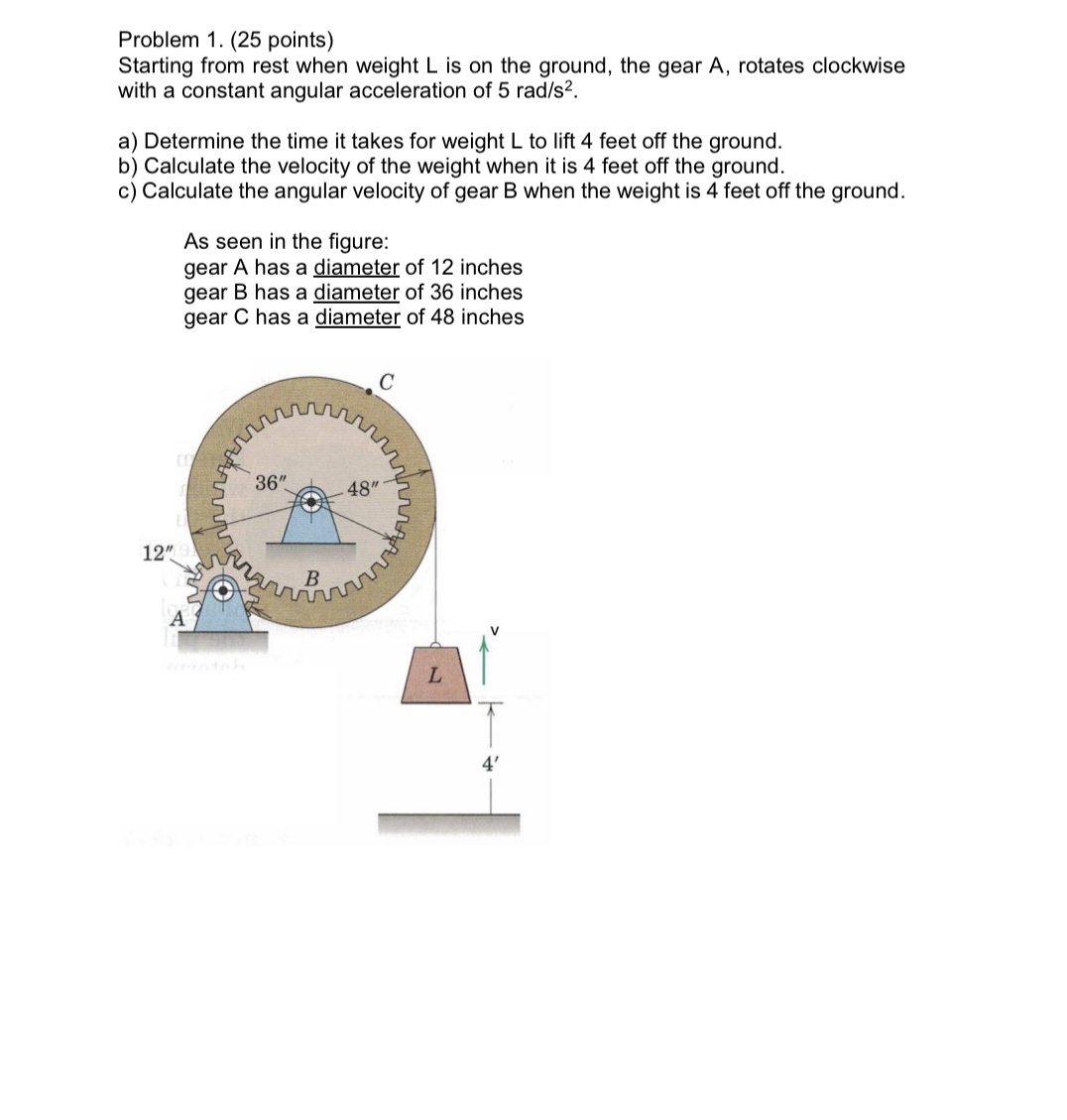

Problem 1.(25 points)
Starting from rest when weight L is on the ground, the gear A, rotates clockwise with a constant angular acceleration of 5rads2.
a) Determine the time it takes for weight L to lift 4 feet off the ground.
b) Calculate the velocity of the weight when it is 4 feet off the ground.
c) Calculate the angular velocity of gear B when the weight is 4 feet off the ground.
As seen in the figure:
gear A has a diameter of 12 inches
gear B has a diameter of 36 inches
gear C has a diameter of 48 inches
Problem 1 . ( 2 5 points ) Starting from rest
