Question: Problem 1 : ( 2 5 points ) The tension member shown in Figure is a PL 1 2 5 1 2 of A 2

Problem 1: (25 points)

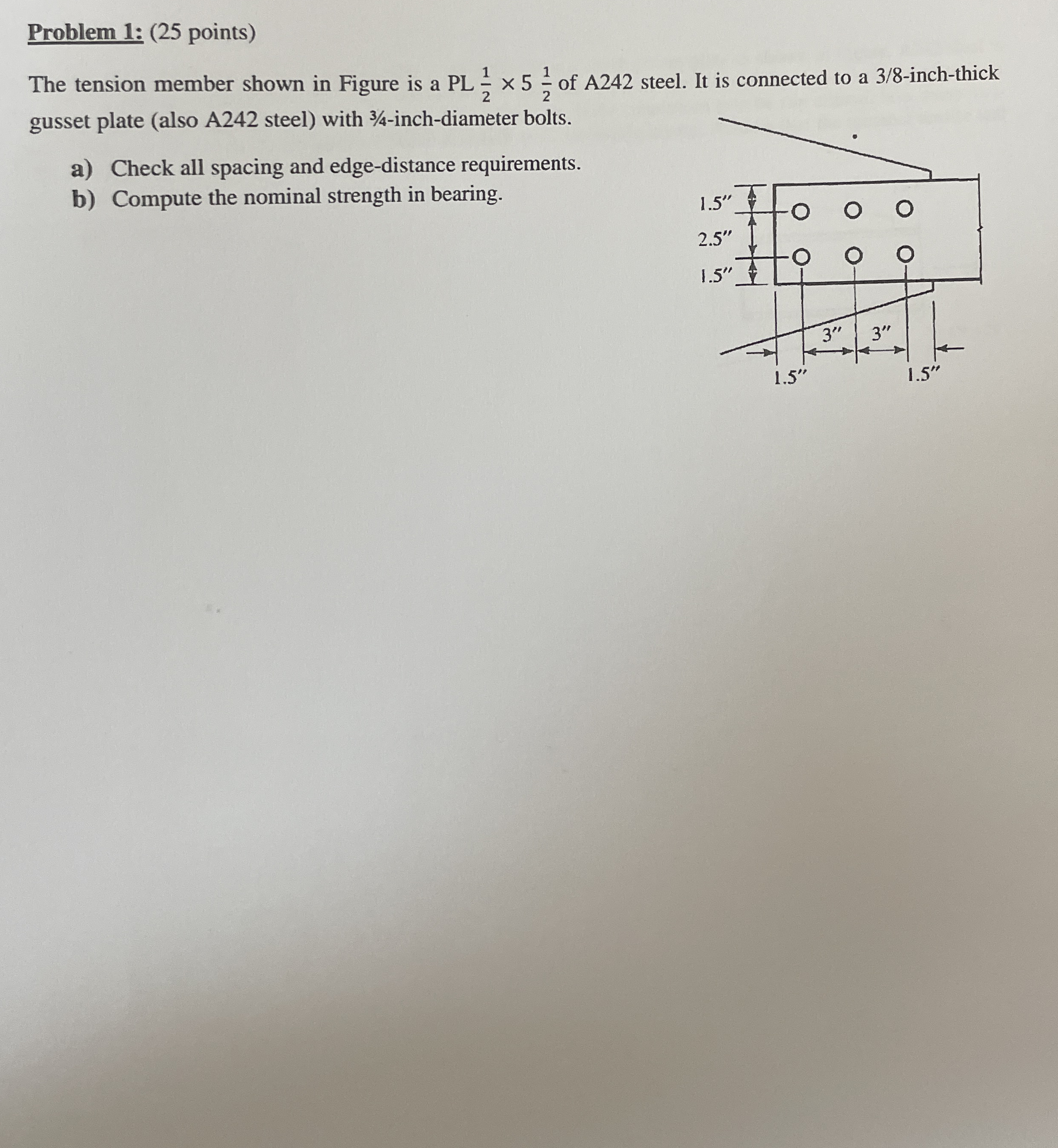

The tension member shown in Figure is a PL 12512 of A242 steel. It is connected to a 38-inch-thick gusset plate (also A242 steel) with 3/4-inch-diameter bolts.
a) Check all spacing and edge-distance requirements.
b) Compute the nominal strength in bearing.
Problem 1 : ( 2 5 points ) The tension member

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
