Question: PROBLEM 1 2 . Determine the recations at pin in C and meber BD . Members are pin connected. Solution: F B = 1 2

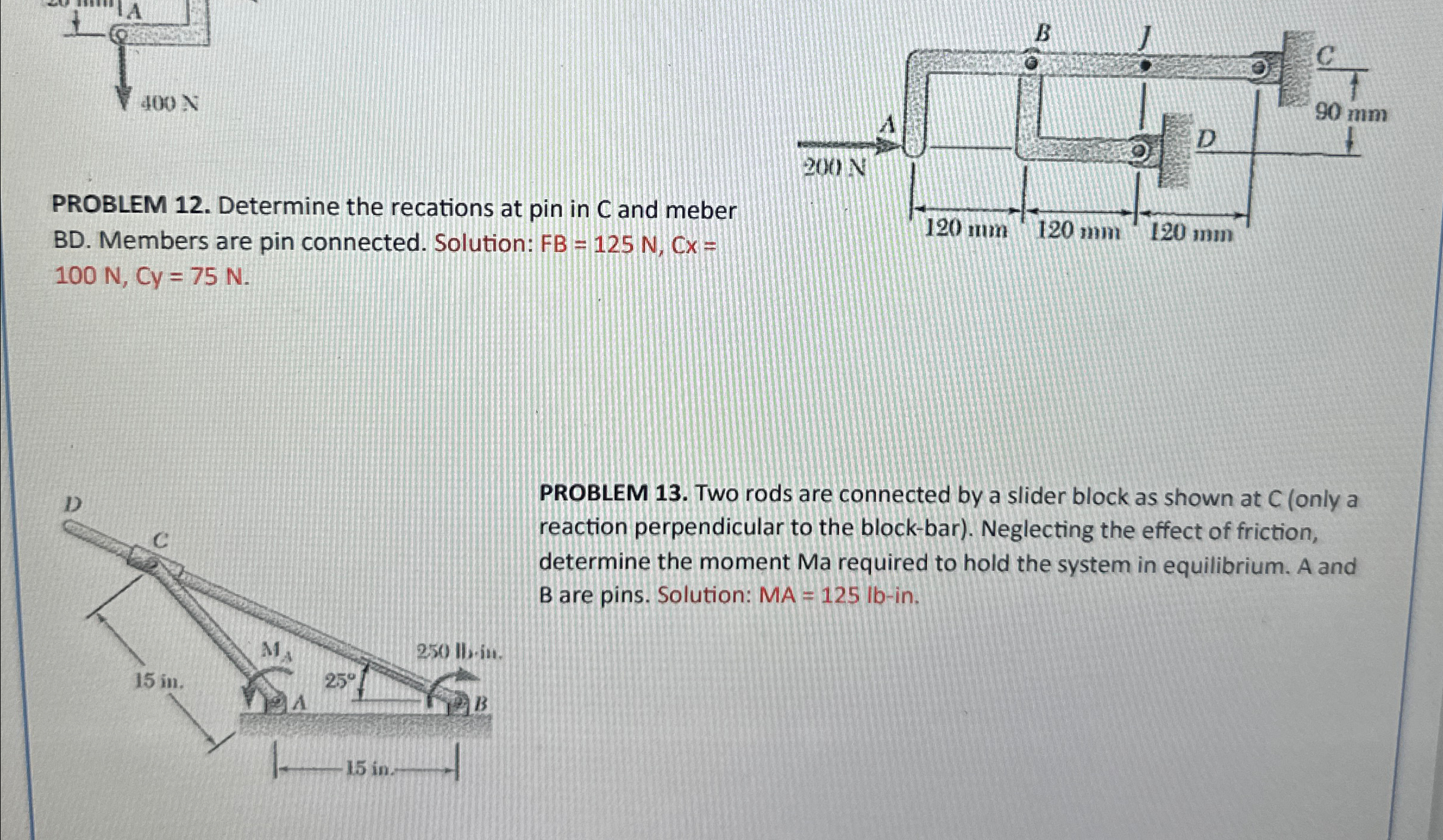

PROBLEM 12. Determine the recations at pin in C and meber BD. Members are pin connected. Solution: FB=125N,Cx=100N,Cy=75N.
PROBLEM 13. Two rods are connected by a slider block as shown at C (only a reaction perpendicular to the block-bar). Neglecting the effect of friction, determine the moment Ma required to hold the system in equilibrium. A and B are pins. Solution: MA=125lb-in.
PROBLEM 1 2 . Determine the recations at pin in C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
