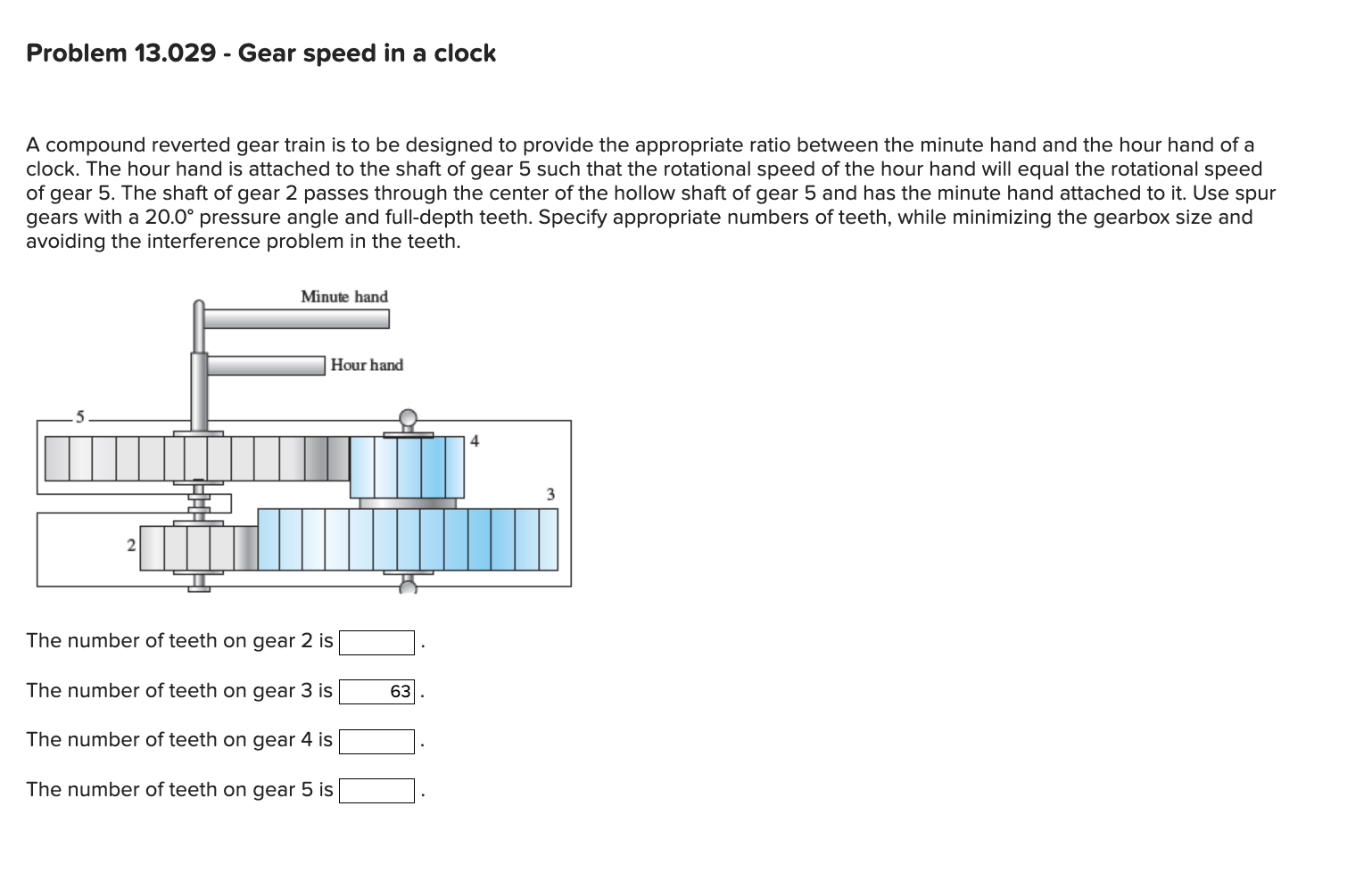

Problem 13.029- Gear speed in a clock
A compound reverted gear train is to be designed to provide the appropriate ratio between the minute hand and the hour hand of a clock. The hour hand is attached to the shaft of gear 5 such that the rotational speed of the hour hand will equal the rotational speed of gear 5. The shaft of gear 2 passes through the center of the hollow shaft of gear 5 and has the minute hand attached to it. Use spur gears with a \(20.0^{\circ}\) pressure angle and full-depth teeth. Specify appropriate numbers of teeth, while minimizing the gearbox size and avoiding the interference problem in the teeth.
The number of teeth on gear 2 is
The number of teeth on gear 3 is
The number of teeth on gear 4 is
The number of teeth on gear 5 is
