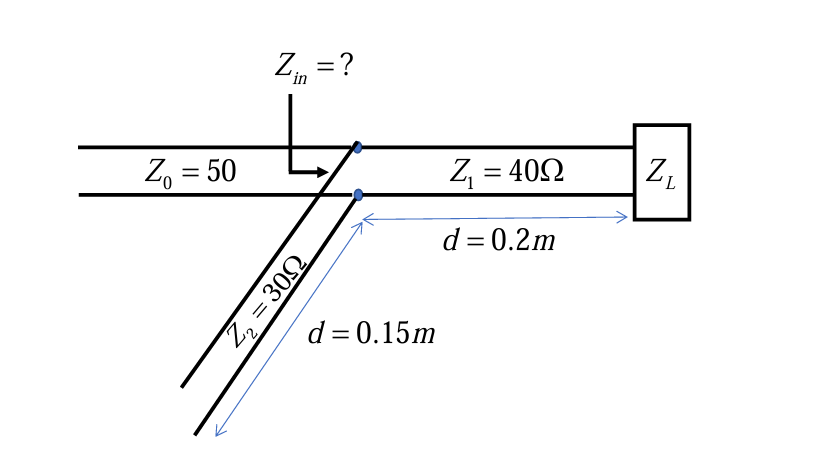

Question: Problem 1 [ 3 0 points ] Figure shows a transmission line circuit. The transmission lines have = 4 0 , = 0 . The

Problem 1[30 points] Figure shows a transmission line circuit. The transmission lines have =40, = 0. The load is a parallel connection of a resistor with a capacitor where R =120 and C=5pF. Write a Matlab code that computes the input impedance of the circuit, then from there it computes the magnitude of the input reflection coefficient and plots it on a frequency range from 0.1GHz to 1GHz. Your plot needs to be in dB scale for full credit. Include copy of your Matlab code as well as the plot you generated in your report. An example Matlab code is posted accompanying this assignment that demonstrates how the input reflection can be computed and plotted for a single stub tuner. The code is for the example that is on slide 23 of lecture file Slides 5 Impedance Matching You can use the example code as a reference. Notice that you will need to modify the code based on the following aspects: Load is a parallel connection of a resistor and a capacitor The section of the transmission line between the load and the stub junction has characteristic impedance of 40 ohms Stub has characteristic impedance of 30 ohms Main line is 50 Ohms. You will need to use this for calculating the input reflection coefficient. Transmission lines have =40, = 0, therefore wavelengths should take this condition into account. Please note that this circuit is not meant to be an impedance matching circuit. It is meant to be a generic circuit that you can use to develop a Matlab code to calculate and plot the input reflection coefficient.
