Question: Problem 1 ( 3 3 points ) : Strain field within a loaded continuum Given the strain tensor, at a given point M , ?

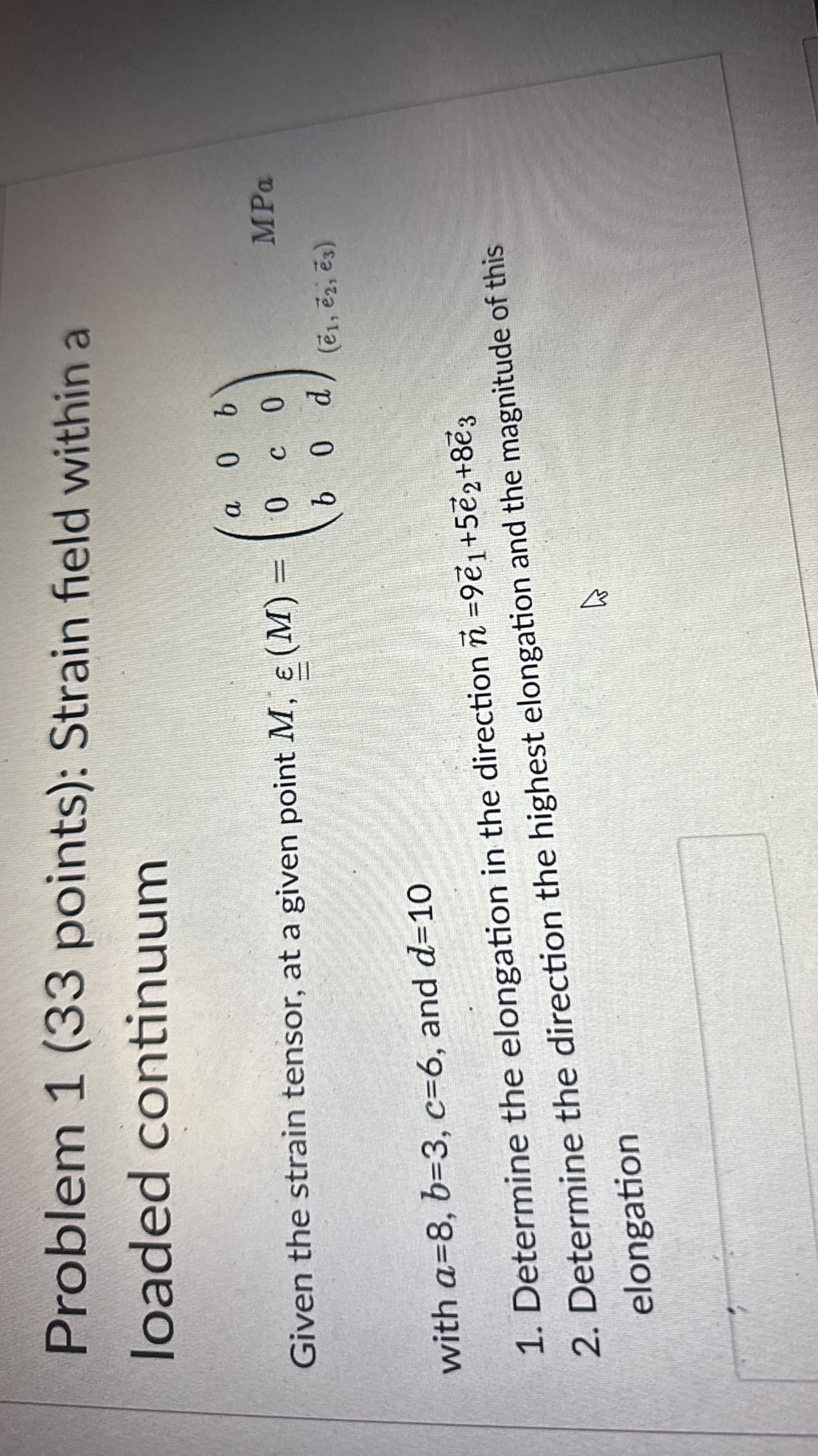

Problem 1(33 points): Strain field within a loaded continuum
Given the strain tensor, at a given point M,??(M)=([a,0,b],[0,c,0],[b,0,d])(vec(e)1,vec(e)2,vec(e)3)MPa with a=8,b=3,c=6, and d=10
Determine the elongation in the direction vec(n)=9vec(e)1+5vec(e)2+8vec(e)3
Determine the direction the highest elongation and the magnitude of this elongation
Problem 1 ( 3 3 points ) : Strain field within a
