Question: PROBLEM 1 3 : Given the plane area as shown, Calculate the moment of inertia of the area about the x axis. Determine the coordinate

PROBLEM 13:

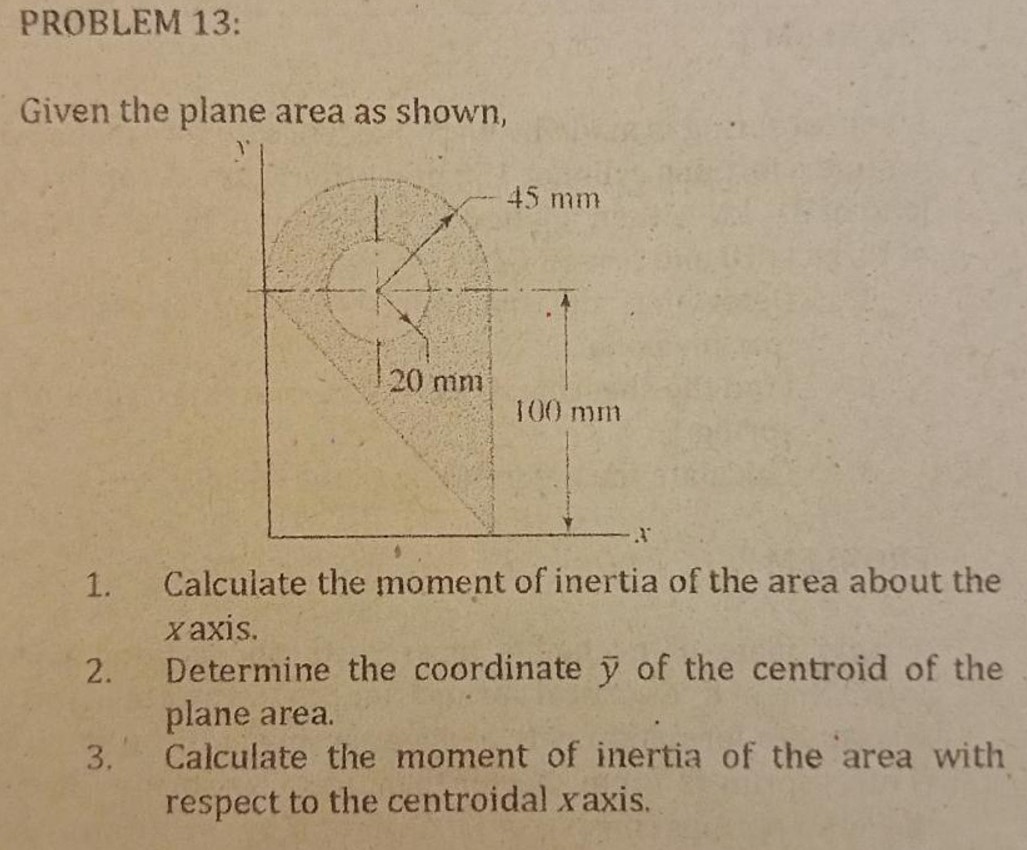

Given the plane area as shown,
Calculate the moment of inertia of the area about the
x axis.
Determine the coordinate ?bar(y) of the centroid of the
plane area.
Calculate the moment of inertia of the area with
respect to the centroidal x axis.
PROBLEM 1 3 : Given the plane area as shown,
