Question: Problem 1 . 3 Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Determine the magnitude

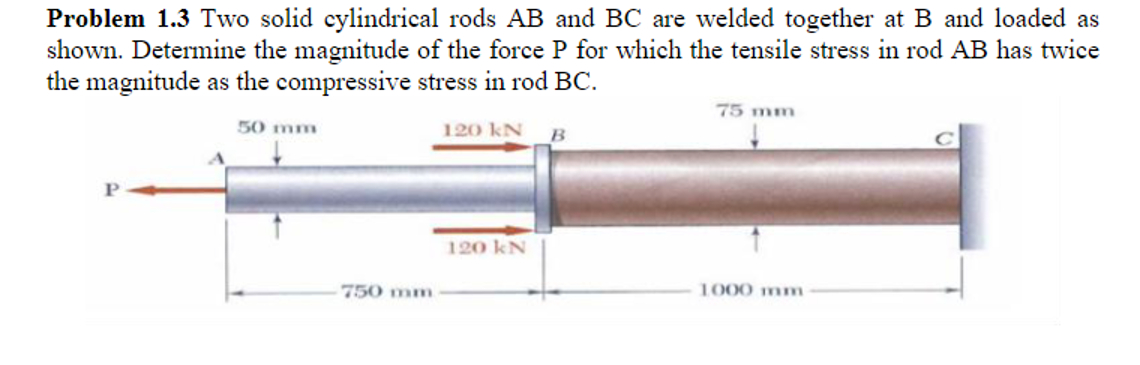

Problem 1.3 Two solid cylindrical rods AB and BC are welded together at B and loaded as
shown. Determine the magnitude of the force P for which the tensile stress in rod AB has twice
the magnitude as the compressive stress in rod BC.
Problem 1 . 3 Two solid cylindrical rods A B and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
