Question: Problem 1 (35 pts) - Equivalent Systems Consider the system shown to the right. The forces have been determined to be: F = 18

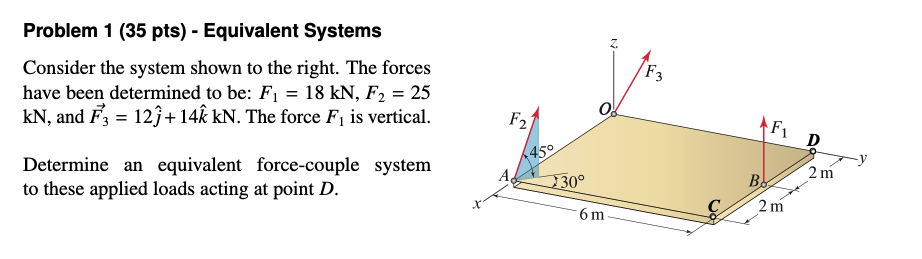

Problem 1 (35 pts) - Equivalent Systems Consider the system shown to the right. The forces have been determined to be: F = 18 kN, F = 25 kN, and F3 = 12+ 14 kN. The force F is vertical. Determine an equivalent force-couple system to these applied loads acting at point D. N F3 0% F2 Fi D 45 230 Bo 2 m 2 m 6 m

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
