Question: Problem 1 : ( 4 0 pts ) - Determine the axial, shear and moment functions for the frame shown below. Your coordinate system should

Problem 1: (40 pts)

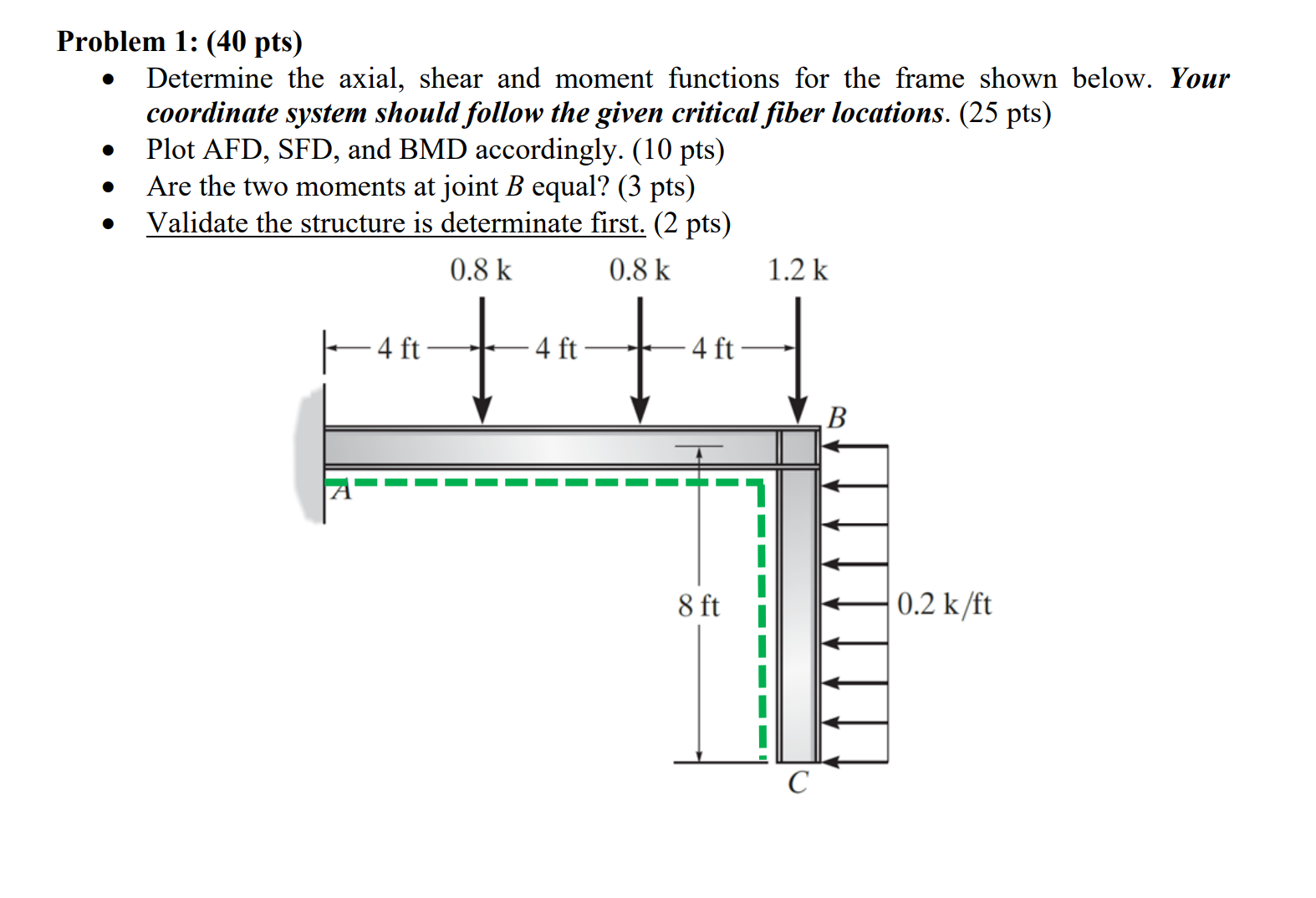

- Determine the axial, shear and moment functions for the frame shown below. Your coordinate system should follow the given critical fiber locations. (25 pts )
- Plot AFD, SFD, and BMD accordingly. (10 pts)
- Are the two moments at joint \( B \) equal? (3 pts\()\)
- Validate the structure is determinate first. (2 pts)
Problem 1 : ( 4 0 pts ) - Determine the axial,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
