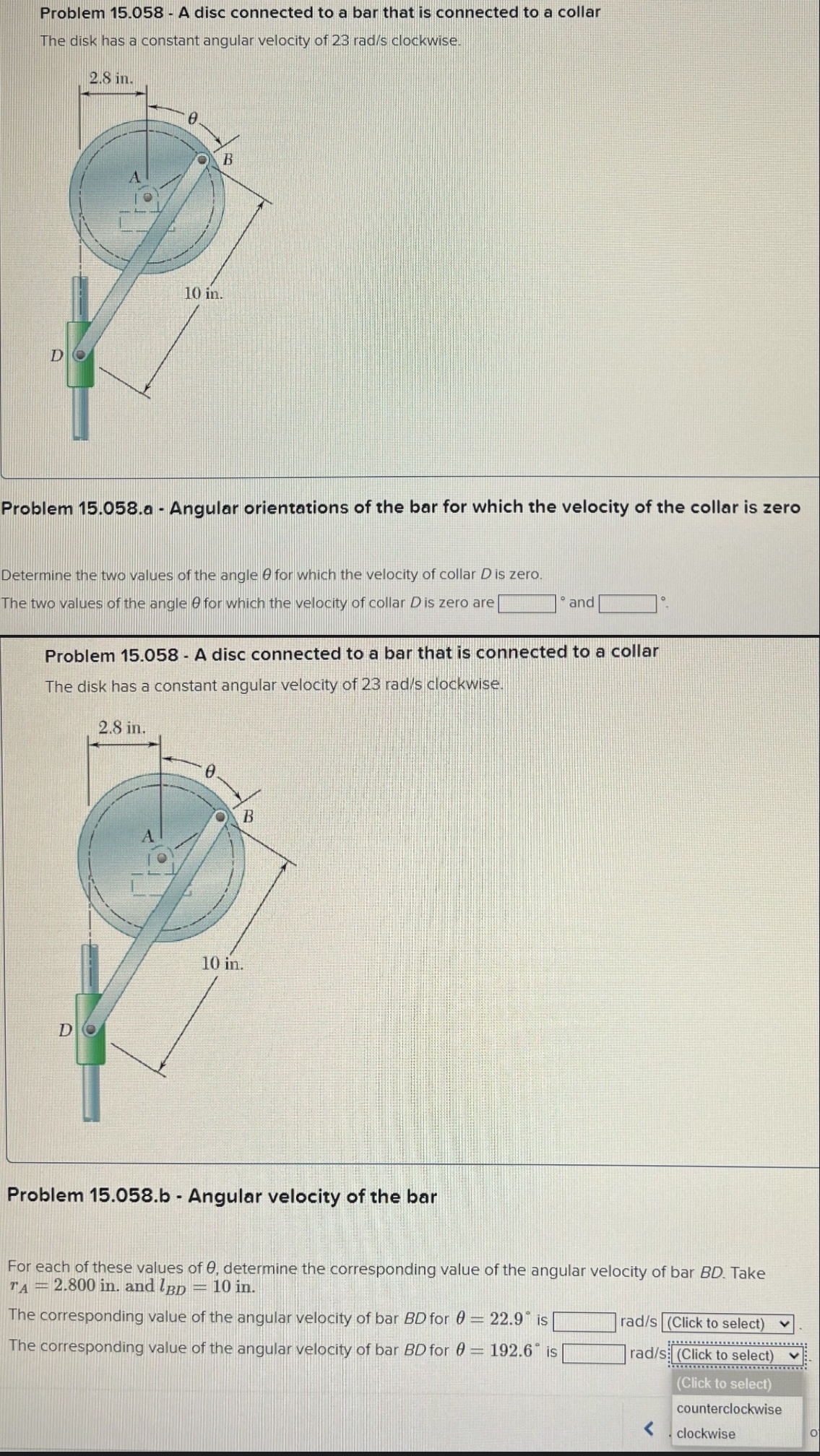

Problem $15\mathrm{.}058-$ A disc connected to a bar that is connected to a collar

The disk has a constant angular velocity of $23ra\frac{d}{s}$ clockwise.

Problem $15\mathrm{.}058.$a $-$ Angular orientations of the bar for which the velocity of the collar is zero

Determine the two values of the angle $$ for which the velocity of collar $D$ is zero.

The two values of the angle $$ for which the velocity of collar $D$ is zero are $$ and

Problem $15\mathrm{.}058-$ A disc connected to a bar that is connected to a collar

The disk has a constant angular velocity of $23ra\frac{d}{s}$ clockwise.

$$

Problem $15\mathrm{.}058.$b $-$ Angular velocity of the bar

For each of these values of $,$ determine the corresponding value of the angular velocity of bar $BD.$ Take $r_A=2\mathrm{.}800in.$ and $l_{BD}=10in.$

The corresponding value of the angular velocity of bar $BD$ for $=22\mathrm{.}9$ is $ra\frac{d}{s}$

The corresponding value of the angular velocity of bar $BD$ for $=192\mathrm{.}6$ is $|$ rad$/$s

$$

$$ counterclockwise

clockwise
