Question: Problem 1 5 . 1 5 8 modified Four pins silde in four separate slots cut in a circular plate as shown. Each pin maintains

Problem 15.158 modified

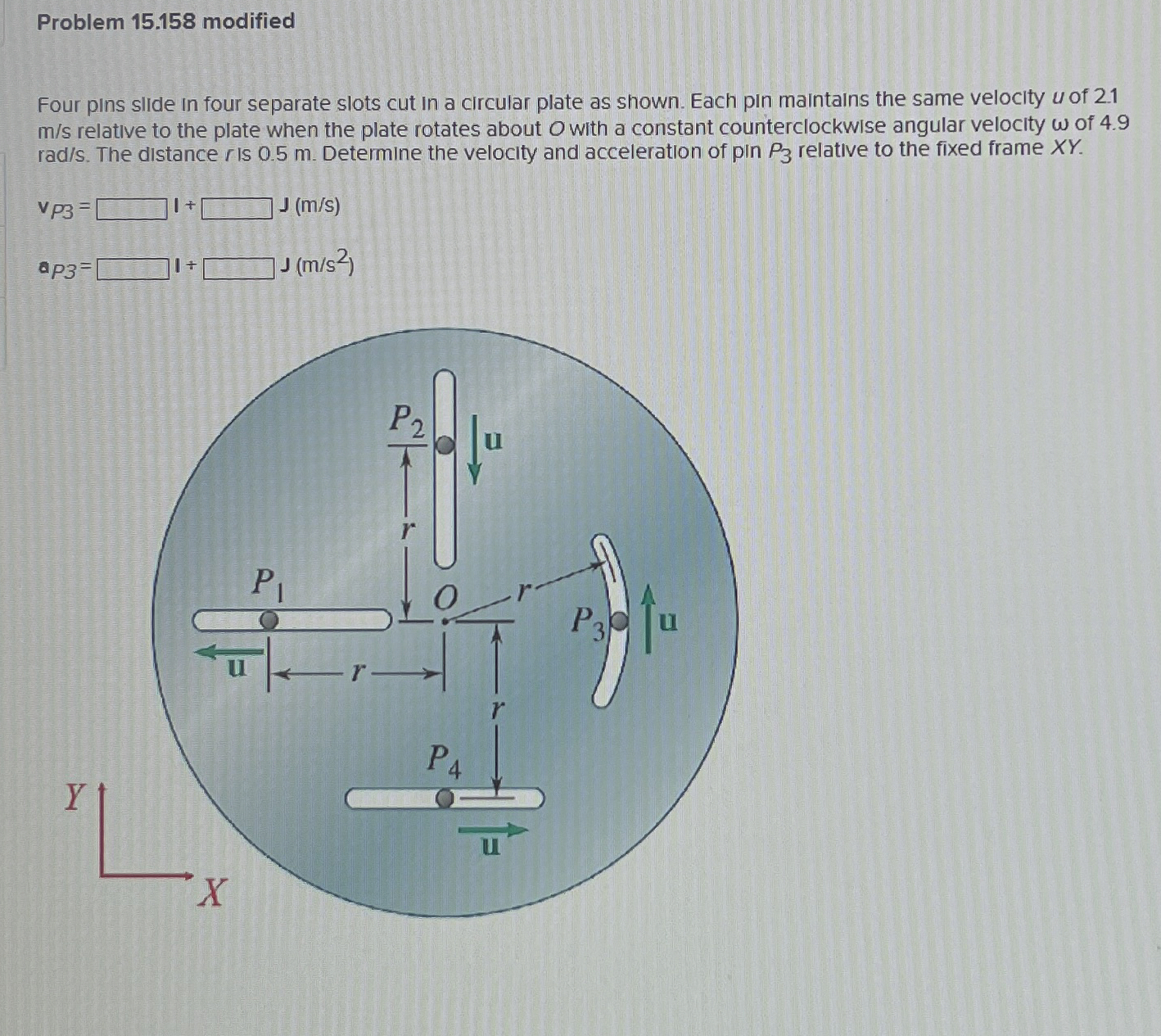

Four pins silde in four separate slots cut in a circular plate as shown. Each pin maintains the same velocity u of 2.1ms relative to the plate when the plate rotates about O with a constant counterclockwise angular velocity of 4.9rads. The distance r Is 0.5 m . Determine the velocity and acceleration of pin P3 relative to the fixed frame xY.
Problem 1 5 . 1 5 8 modified Four pins silde in
