Question: Problem 1 . 5 a ) Determine the force in members JK , CJ , and CD of the truss, and state if the members

Problem 1.5

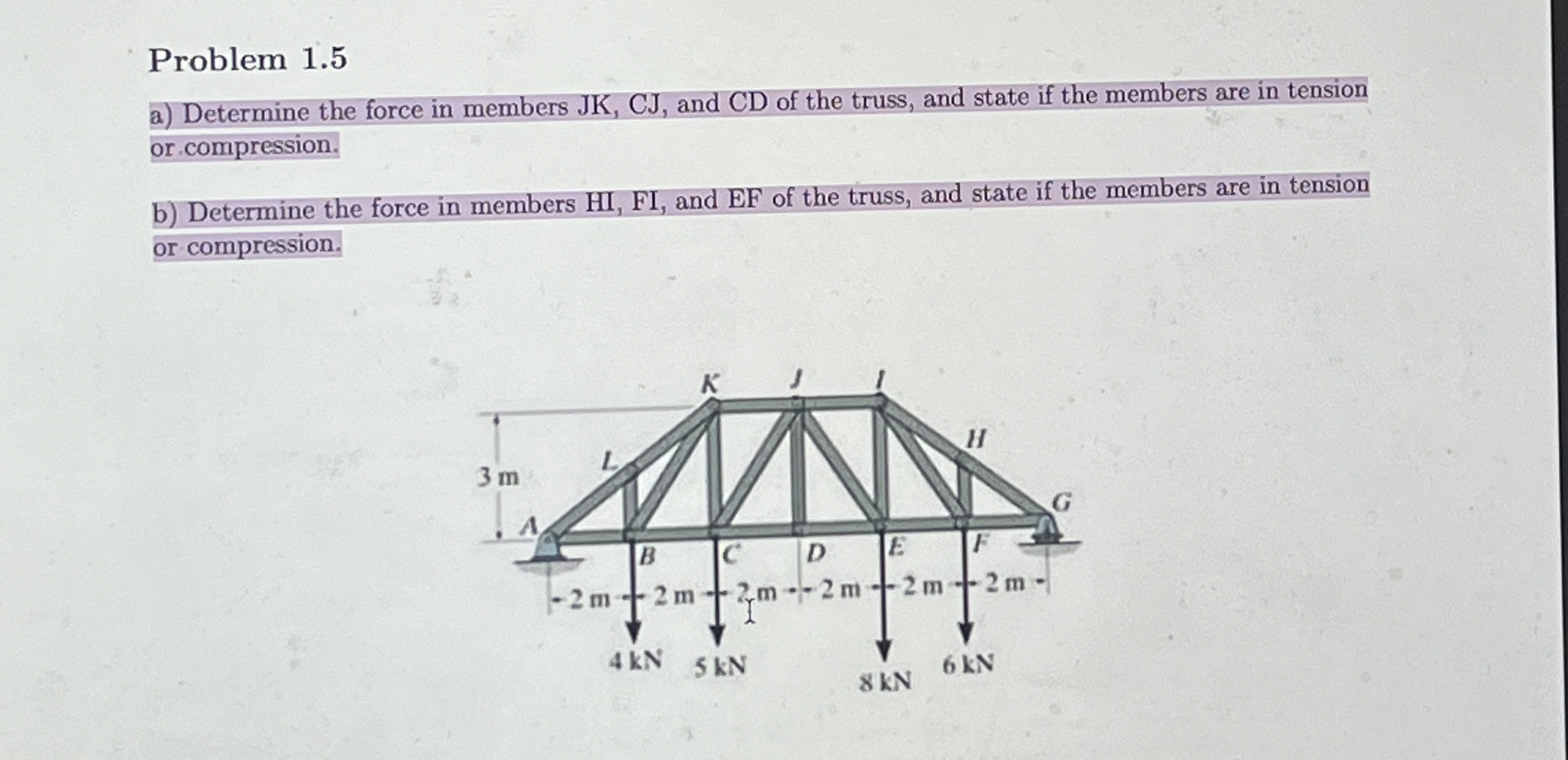

a) Determine the force in members JK, CJ, and CD of the truss, and state if the members are in tension or compression.
b) Determine the force in members HI,FI, and EF of the truss, and state if the members are in tension or compression. Please do part B
Problem 1 . 5 a ) Determine the force in members

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
