Question: Problem 1 ) A square is subjected to two forces. Given this information answer the questions below: Figure 1 : Box in static equilibrium. i

Problem 1) A square is subjected to two forces. Given this information answer the questions below:

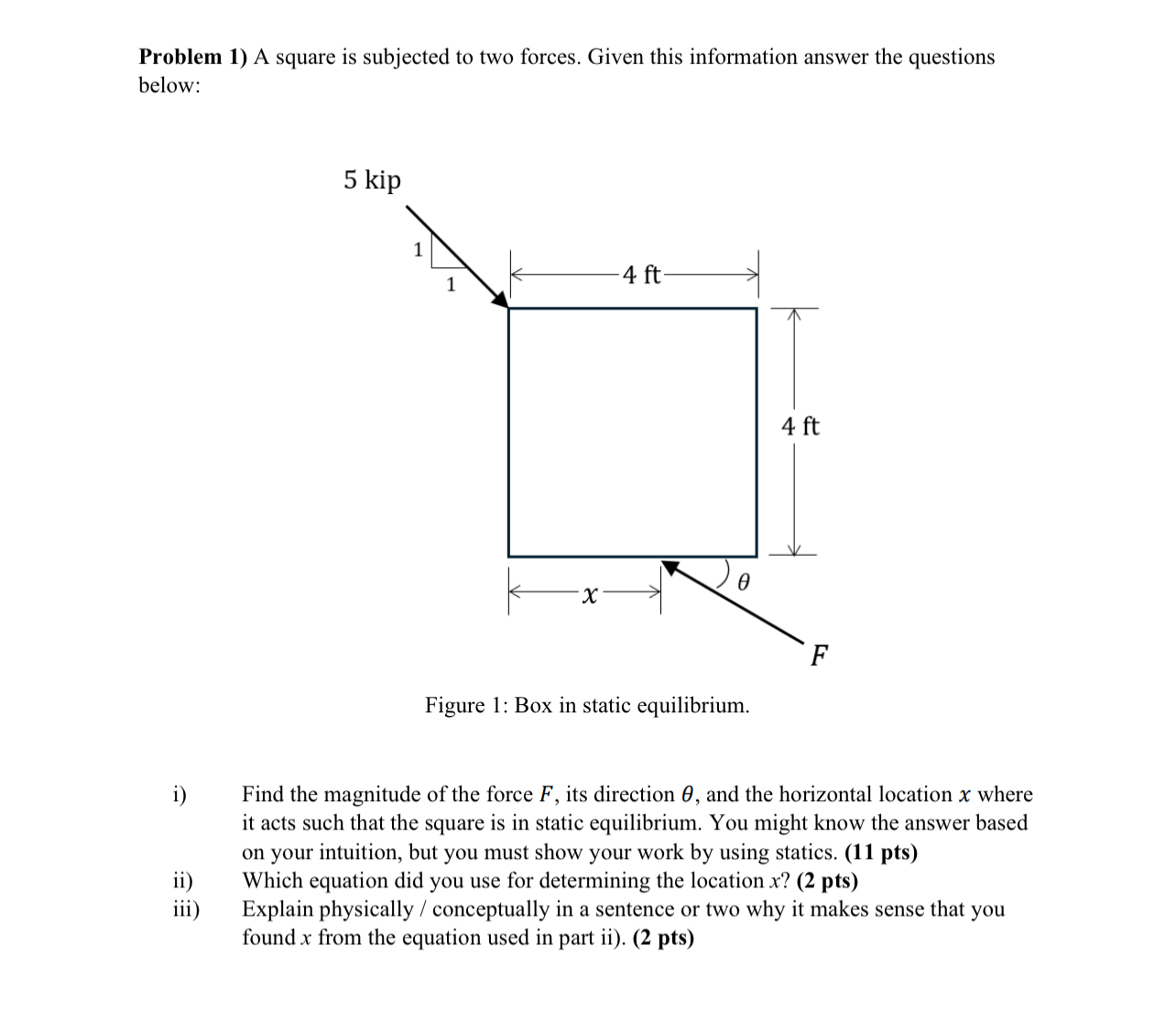

Figure 1: Box in static equilibrium.
i) Find the magnitude of the force F, its direction , and the horizontal location x where it acts such that the square is in static equilibrium. You might know the answer based on your intuition, but you must show your work by using statics. (11 pts)
ii) Which equation did you use for determining the location x?(2 pts)
iii) Explain physically / conceptually in a sentence or two why it makes sense that you found x from the equation used in part ii).(2 pts)
Problem 1 ) A square is subjected to two forces.
