Question: Problem 1 . By visual inspection, does the shown truss have any zero - force members? If yes, mention them. Problem 2 . Determine the

Problem 1.

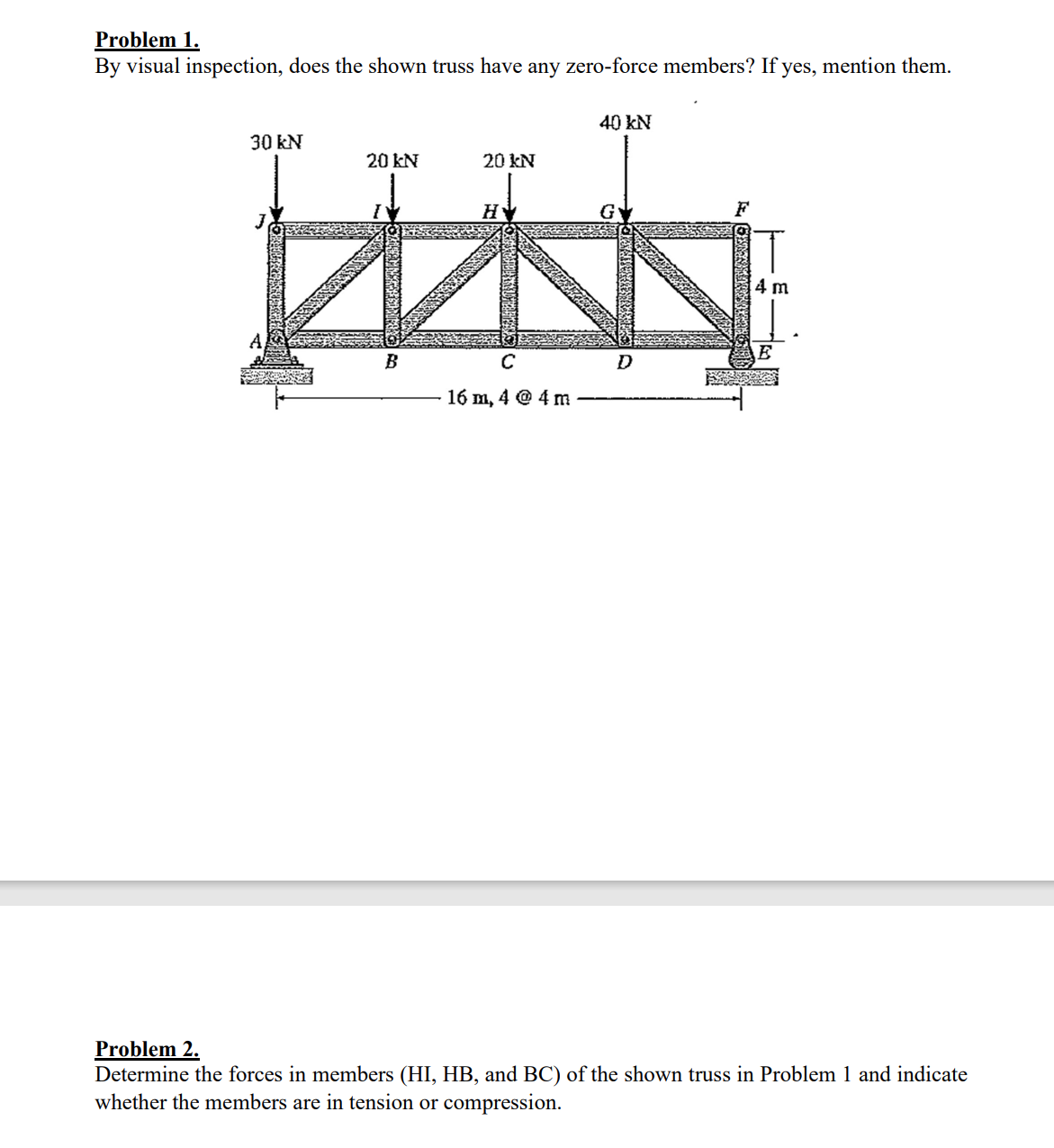

By visual inspection, does the shown truss have any zero-force members? If yes, mention them.
Problem 2.
Determine the forces in members (HI, HB, and BC) of the shown truss in Problem 1 and indicate
whether the members are in tension or compression. please explain how we obtain zero forces member , and moments
Problem 1 . By visual inspection, does the shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
