Question: Problem 1 ( Ch 6 ) Draw the influence lines for ( a ) vertical reaction at A , ( b ) shear at C

Problem 1(Ch 6)

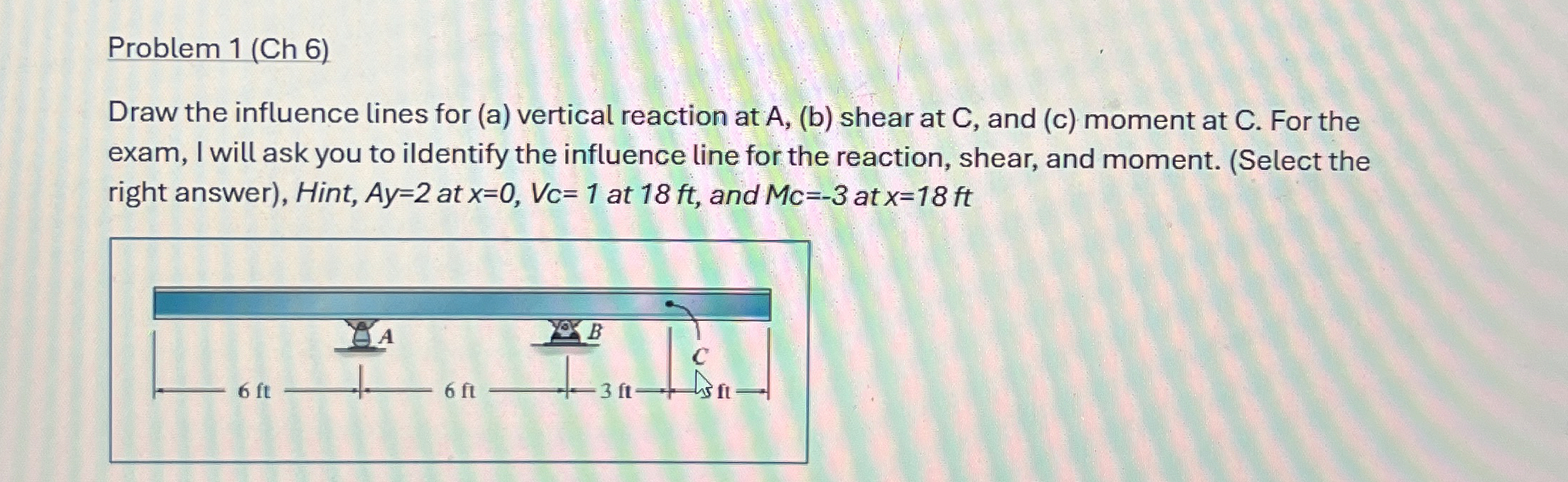

Draw the influence lines for (a) vertical reaction at A,(b) shear at C, and (c) moment at C. For the exam, I will ask you to ildentify the influence line for the reaction, shear, and moment. (Select the right answer), Hint, Ay=2 at x=0,Vc=1 at 18 ft , and Mc=-3 at x=18ft
PLEASE WRITE OUT ALL STEPS AND WORK. THANK YOU
Problem 1 ( Ch 6 ) Draw the influence lines for (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
