Question: Problem 1. Consider the following first order dynamic system described by the differential equation 5dtdn(t)+n(t)=0.35u(t)+d(t) where n(t),u(t) and d(t) are respectively the output, manipulated input

Problem 1. Consider the following first order dynamic system described by

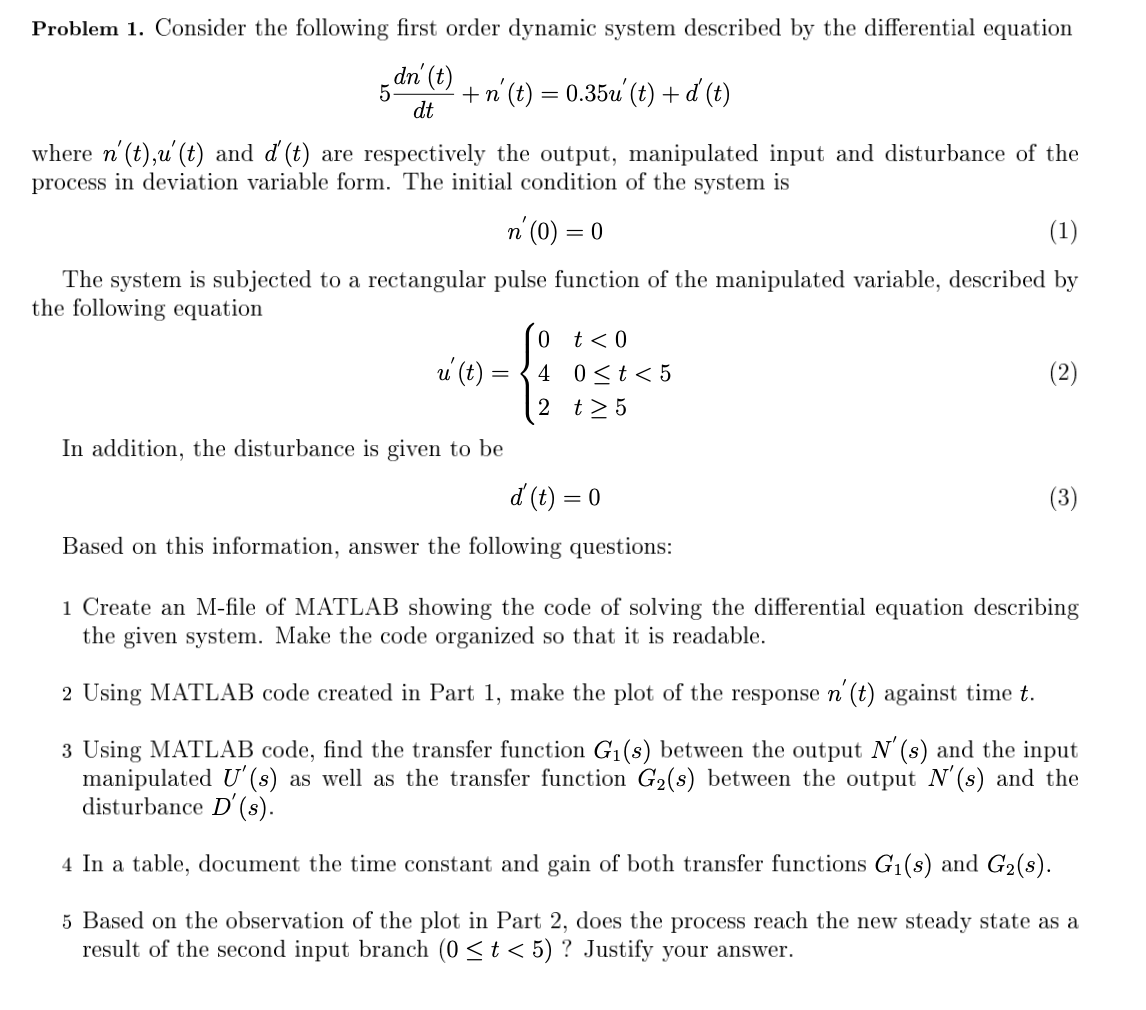

Problem 1. Consider the following first order dynamic system described by the differential equation 5dtdn(t)+n(t)=0.35u(t)+d(t) where n(t),u(t) and d(t) are respectively the output, manipulated input and disturbance of the process in deviation variable form. The initial condition of the system is n(0)=0 The system is subjected to a rectangular pulse function of the manipulated variable, described by the following equation u(t)=042t

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
