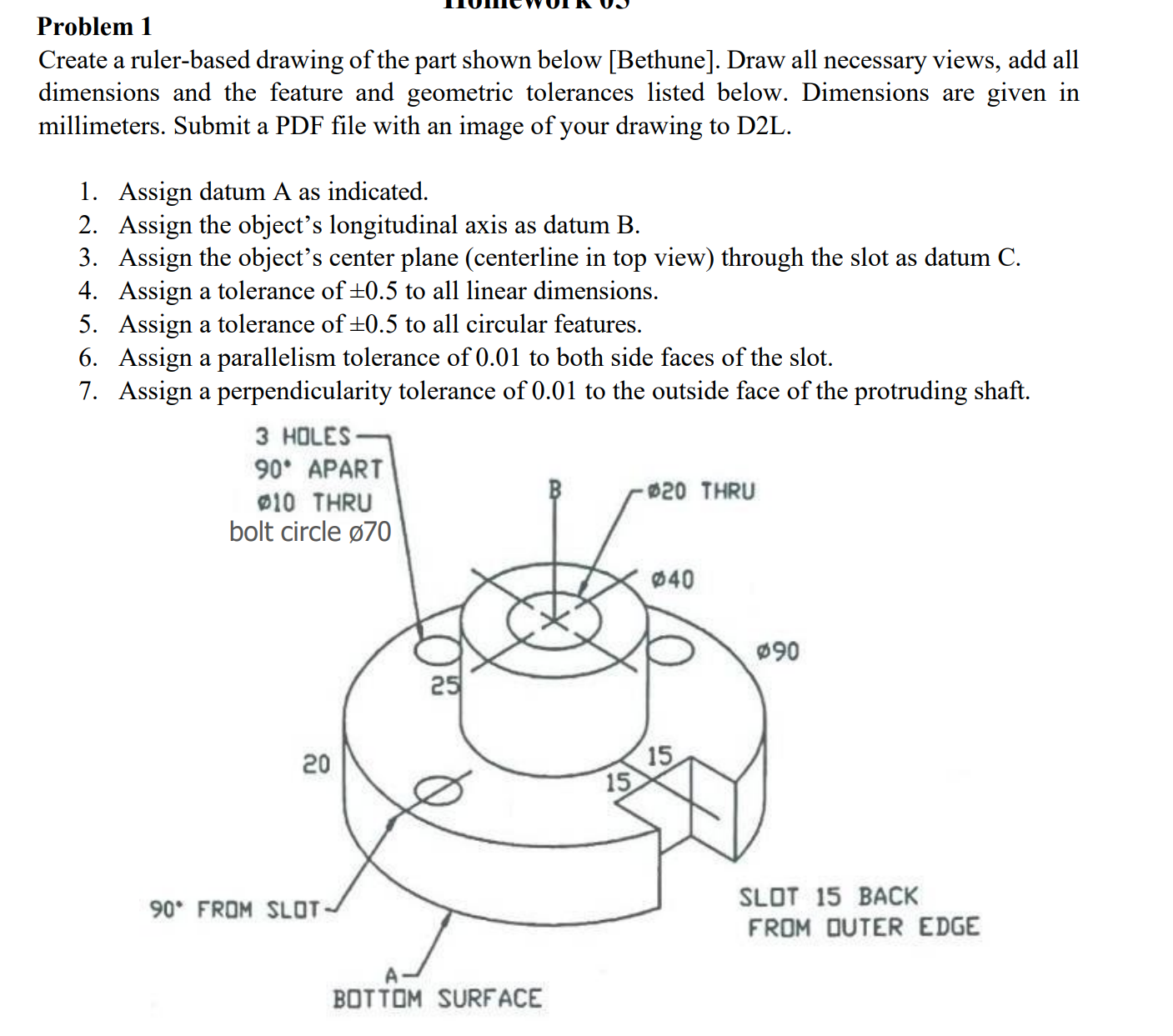

Problem $1$

Create a ruler$-$based drawing of the part shown below $[$Bethune$].$ Draw all necessary views, add all dimensions and the feature and geometric tolerances listed below. Dimensions are given in millimeters. Submit a PDF file with an image of your drawing to D$2$L$.$

$1.$ Assign datum A as indicated.

$2.$ Assign the object's longitudinal axis as datum $\backslash ($ B $\backslash ).$

$3.$ Assign the object's center plane $($centerline in top view$)$ through the slot as datum C$.$

$4.$ Assign a tolerance of $\backslash (\backslash$pm $0\mathrm{.}5\backslash )$ to all linear dimensions.

$5.$ Assign a tolerance of $\backslash (\backslash$pm $0\mathrm{.}5\backslash )$ to all circular features.

$6.$ Assign a parallelism tolerance of $0\mathrm{.}01$ to both side faces of the slot.

$7.$ Assign a perpendicularity tolerance of $0\mathrm{.}01$ to the outside face of the protruding shaft.
