Question: Problem 1 : Determine the displacement at point ( D . E I ) is constant. Assuming ( E ) ,

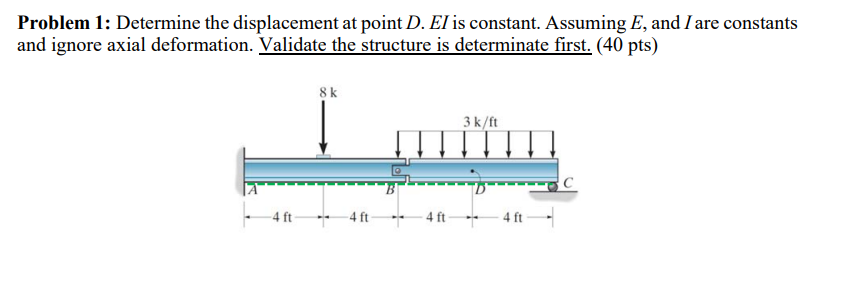

Problem 1: Determine the displacement at point \( D . E I \) is constant. Assuming \( E \), and \( I \) are constants and ignore axial deformation. Validate the structure is determinate first. (40 pts )
Problem 1 : Determine the displacement at point \

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Use the principle of virtual work to find all the required displacements below. Consider to use the qualitative analysis to help generate the BMDs and use the integration table for the calculation....

Q:

Students have 40 minutes to work on the following problem with their assisted groups. Problem #1) Determine the displacement of point B on the beam shown in the figure. El is constant. W B Problem...

Q:

Problem 1 . Determine the displacement of point C and the slope at point B . E I is constant. Use the principle of virtual work. Use Castigliano's theorem.

Q:

Consider the beam in ( Figure 1 ) . Use the principle of virtual work. EI is constant. Part A Determine the displacement at point \ ( D \ ) . Express your answer in kilopound - cubic feet per EI to...

Q:

Problem 1 4 - 9 1 Determine the displacement of point C of the beam made from A - 3 6 steel and having a moment of inertia of I = 2 1 ( 1 0 6 ) m m 4 . Problem 1 4 - 9 3 Problem 1 4 - 1 0 1 The A - 3...

Q:

A beam B 1 carrying a combined uniformly distributed dead load and self - weight of 1 . 5 Kip s F t and a uniformly distributed live load of 2 . 5 Kip s F t is connected to Column C 1 with two L 3 3...

Q:

* 8 - 4 4 . Determine the displacement at point \ ( D \ ) . Use the principle of virtual work. \ ( E I \ ) is constant. 8 - 4 5 . Solve Prob. 8 - 4 4 using Castigliano's theorem. 8 - 4 5 only

Q:

Problem 6 . 9 [ 1 0 Points ] Using Castigliano's theorem, determine the displacement at point C . EI is constant.

Q:

* 8 - 4 4 . Determine the displacement at point D . Use the principle of virtual work. EI is constant. Please also include bending moment diagrams!

Q:

Determine the displacement at point D. Use Castiglianos theorem. EI is constant. 8 k 3 k/ft B 4 ft - -4 ft -4 ft- 4 ft
