Question: Problem 1 : Determine the equations for slope and deflection of the beam shown by the direct integration method. Then evaluate the rotation and vertical

Problem

1

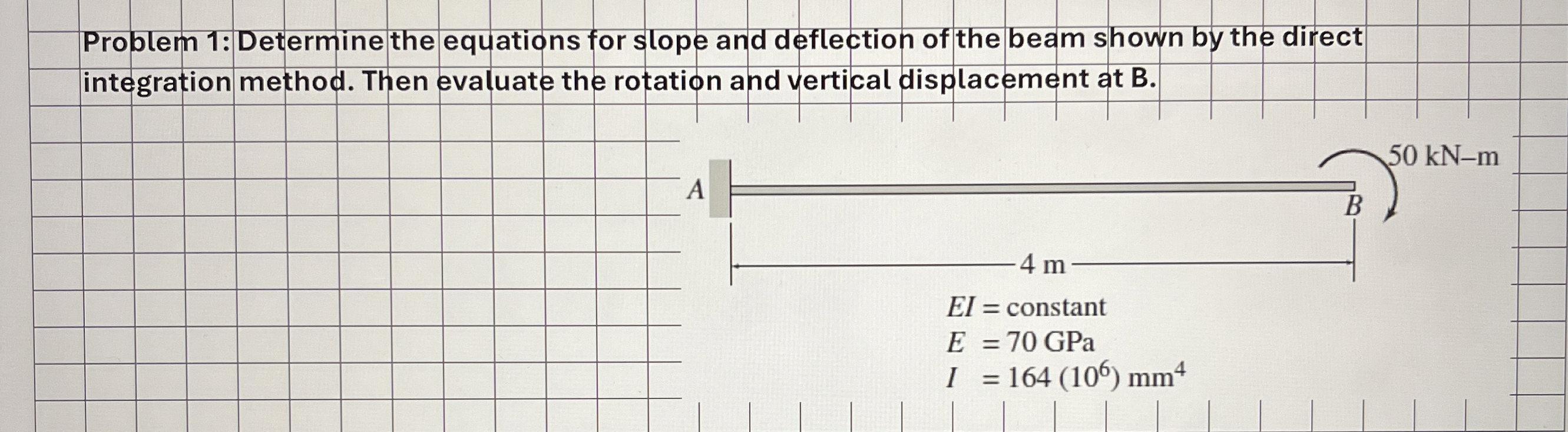

: Determine the equations for slope and deflection of the beam shown by the direct integration method. Then evaluate the rotation and vertical displacement at

B .

Problem 1 : Determine the equations for slope and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
