Question: Problem 1 Determine the shear strain at corner D if the plate deformes as shown by the dashed line below. HINT: Make sure you pay

Problem 1

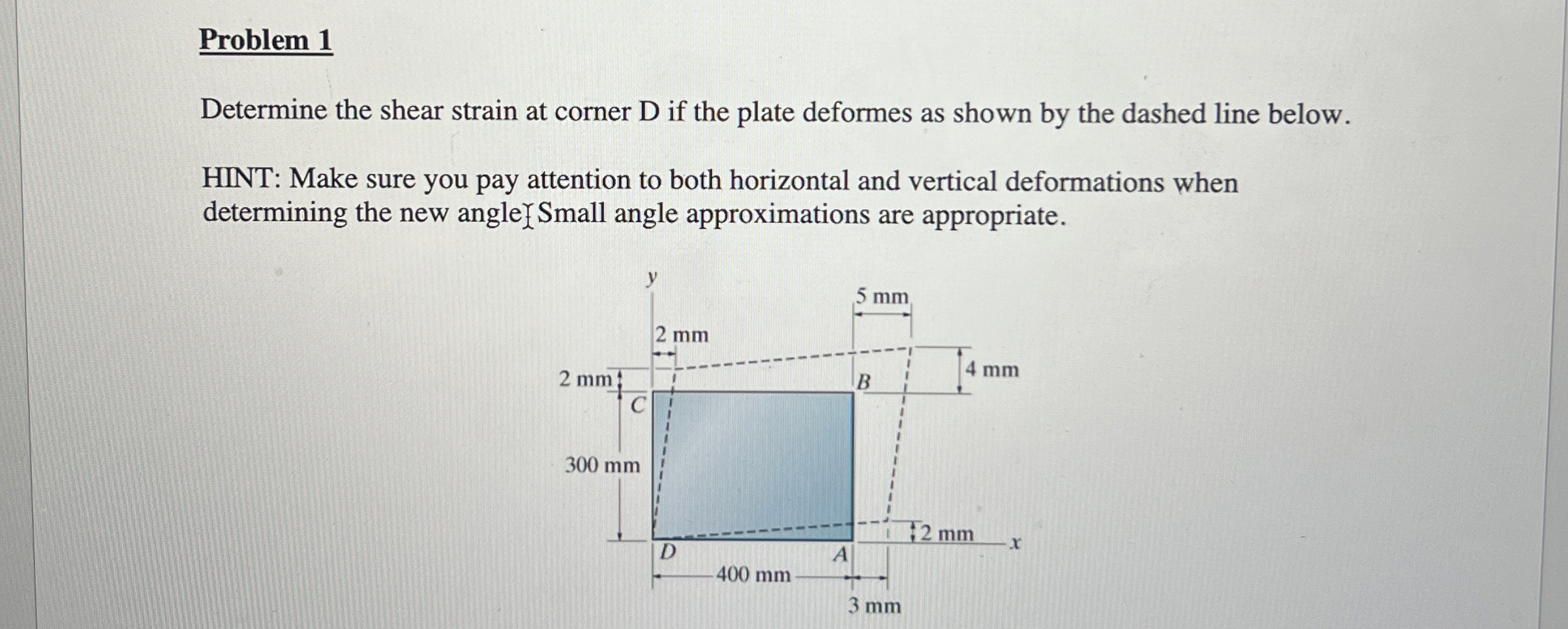

Determine the shear strain at corner D if the plate deformes as shown by the dashed line below.
HINT: Make sure you pay attention to both horizontal and vertical deformations when
determining the new angle
Problem 1 Determine the shear strain at corner D

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
