Question: Problem 1 : determine the specified rotation and deflection with double integration method, assume the beam stiffness is EI . a . Find t h

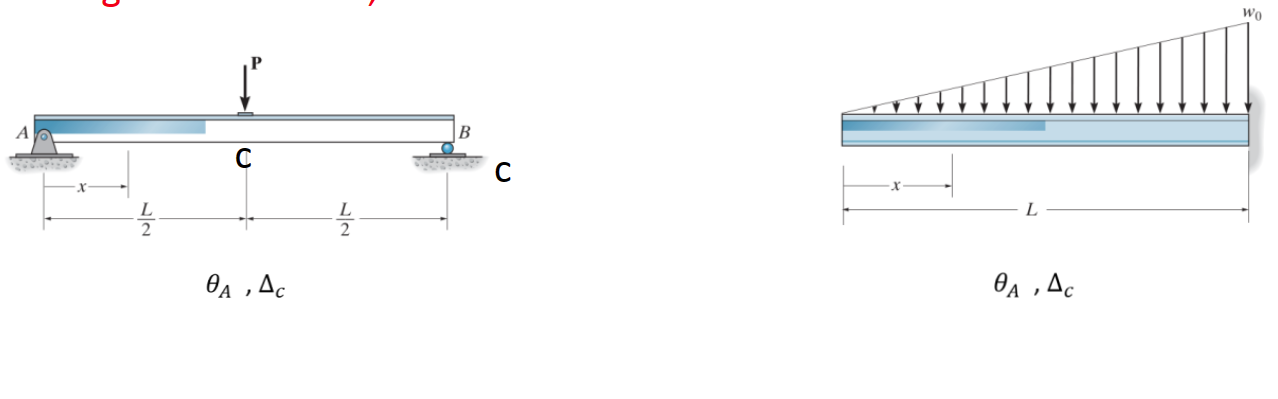

Problem 1: determine the specified rotation and deflection with double integration method, assume the beam stiffness is EI.
a. Find thetaa and deltaC for figure one.
b.Find theta_a and deltaC for figure two.
Problem 1 : determine the specified rotation and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
