Question: Problem 1 : ( FEA of an Euler - Bernoulli Beam ) . . . see Lecture Example Consider the beam ( material property E

Problem 1: (FEA of an Euler-Bernoulli Beam)...see Lecture Example

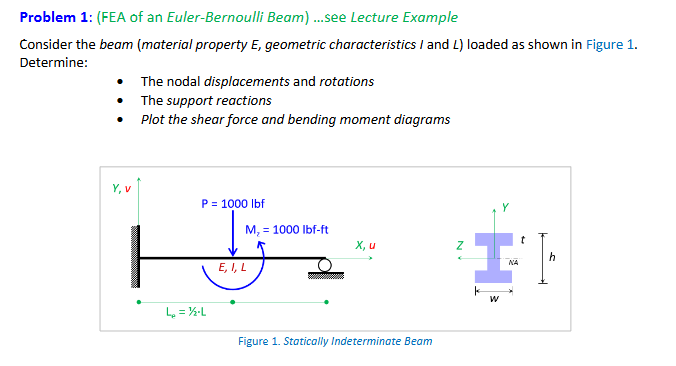

Consider the beam (material property E, geometric characteristics I and L) loaded as shown in Figure 1.
Determine:
The nodal displacements and rotations
The support reactions
Plot the shear force and bending moment diagrams
Use the direct stiffness matrix to solve.
Problem 1 : ( FEA of an Euler - Bernoulli Beam )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
