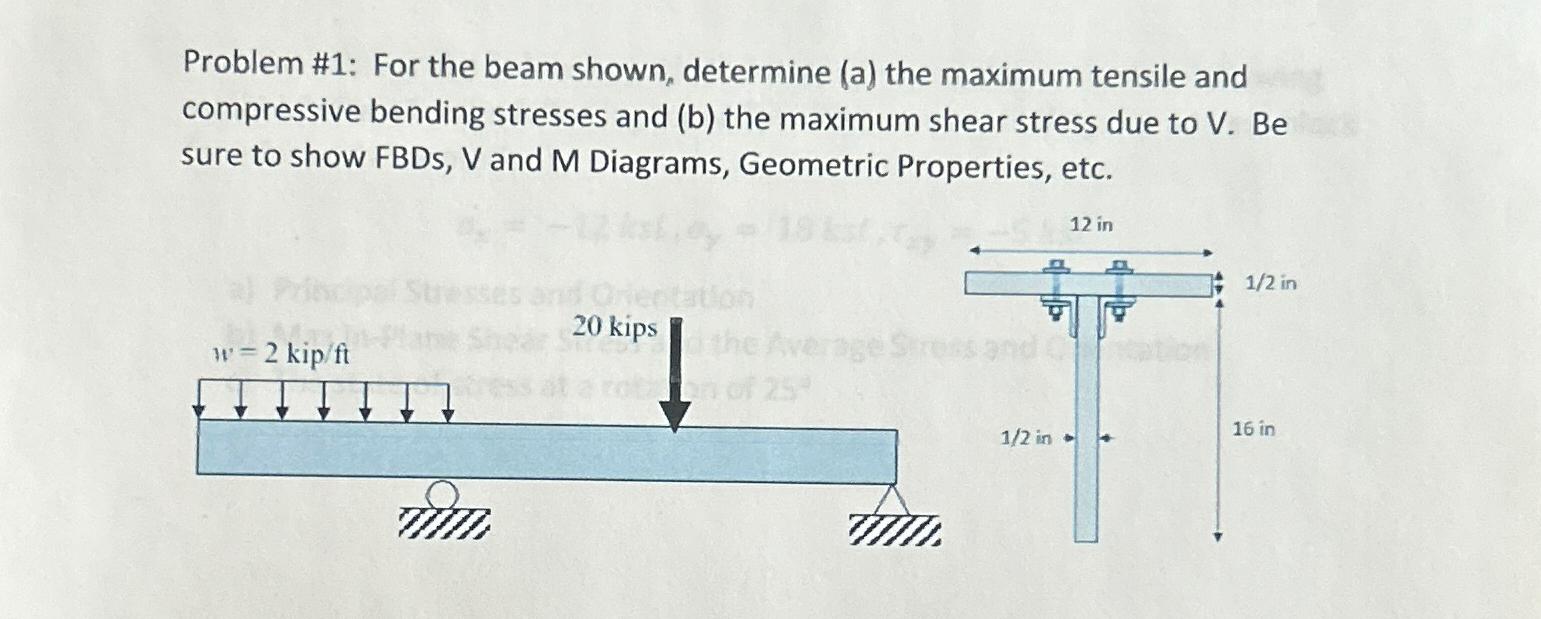

Problem 1 For the beam shown, determine ( a ) the maximum tensile and compressive bending stresses and ( b ) the maximum shear stress due to V Be sure to show FBDs , V and M Diagrams, Geometric Properties, etc

Question: Problem # 1 : For the beam shown, determine ( a ) the maximum tensile and compressive bending stresses and ( b ) the maximum

Problem #

1

: For the beam shown, determine

(

)

the maximum tensile and compressive bending stresses and

(

)

the maximum shear stress due to V

.

Be sure to show FBDs

,

V and M Diagrams, Geometric Properties, etc.

Problem # 1 : For the beam shown, determine ( a )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

I can help with this beam analysis problem Lets break it down stepbystep Given Data A simply supported beam with a length of 12 ft Uniform load w 2 te... View full answer
