Question: Problem 1 : For the frame shown, determine the reactions, Use moment distribution. E = 2 0 0 1 0 6 k N m 2

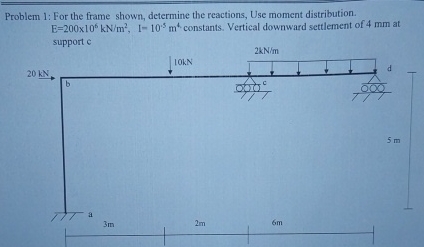

Problem 1: For the frame shown, determine the reactions, Use moment distribution. E=200106kNm2,I=10-5m4 constants. Vertical downward settlement of 4 mm at support c
Problem 1 : For the frame shown, determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
