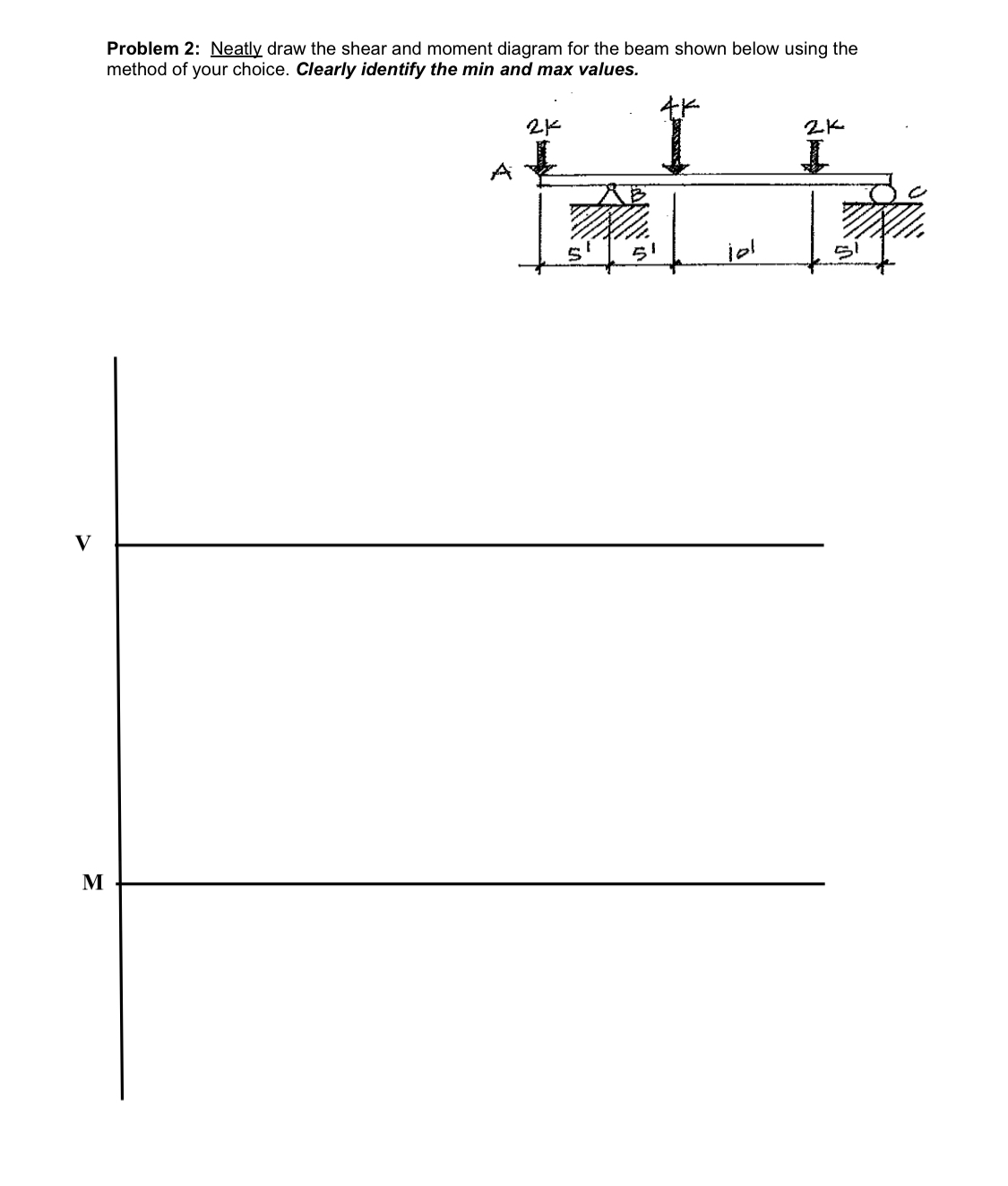

Problem $1$: Given the following beam under loading:Problem $2$: Neatly draw the shear and moment diagram for the beam shown below using the

method of your choice. Clearly identify the min and max values.

Assume the reactions for point B is $25k($upward$)$

and for point $D$ is $5k($upward$).$

Cut the beam and the three places shown $($cut $1-1$:

between $0$ and $5\text{'},$ cut $2-2$: between $5\text{'}$ and $10\text{'},$ cut $3-$

$3$: between ${10}^{\text{'}}$ and ${15}^{\text{'}}).$ Use this information with

equilibrium equations to neatly draw the shear and

moment diagram. Clearly identify the min and max

values.
