Question: Problem 1 Given the network in the figure below, find the power supplied and the average power absorbed by each element.

Problem 1

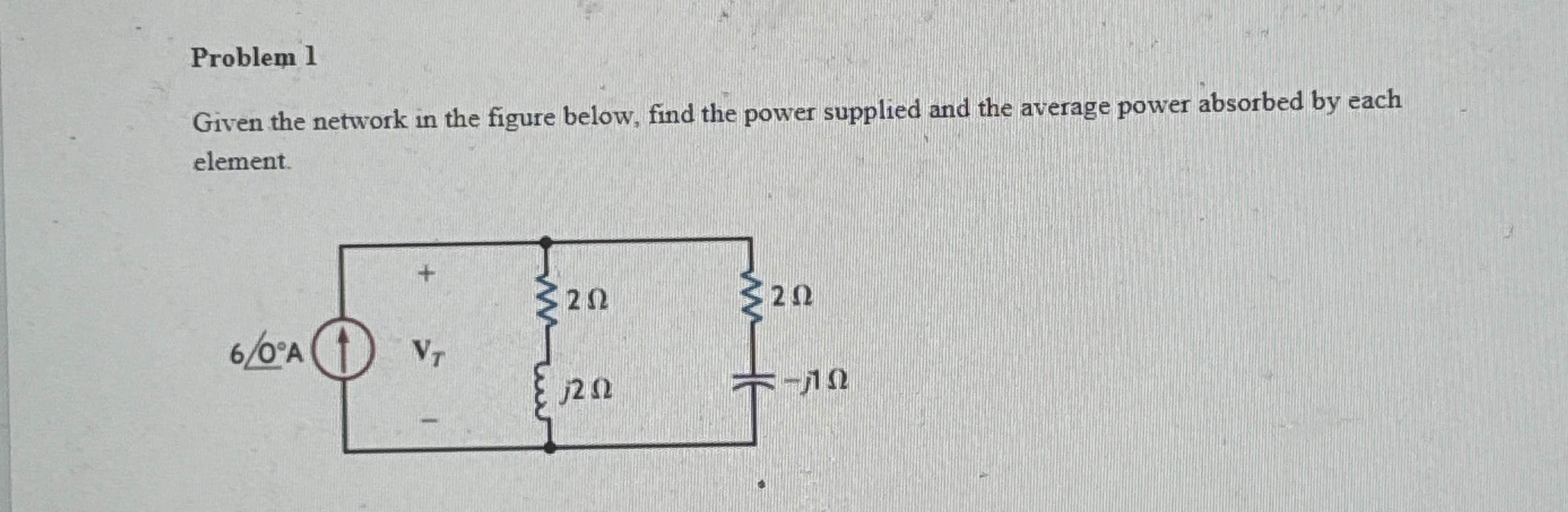

Given the network in the figure below, find the power supplied and the average power absorbed by each element.
Problem 1 Given the network in the figure below,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
