Question: Problem 1 Numerical Problem ( 1 0 points ) : Calculate the support reactions at A and B based on the figure below. Please present

Problem 1

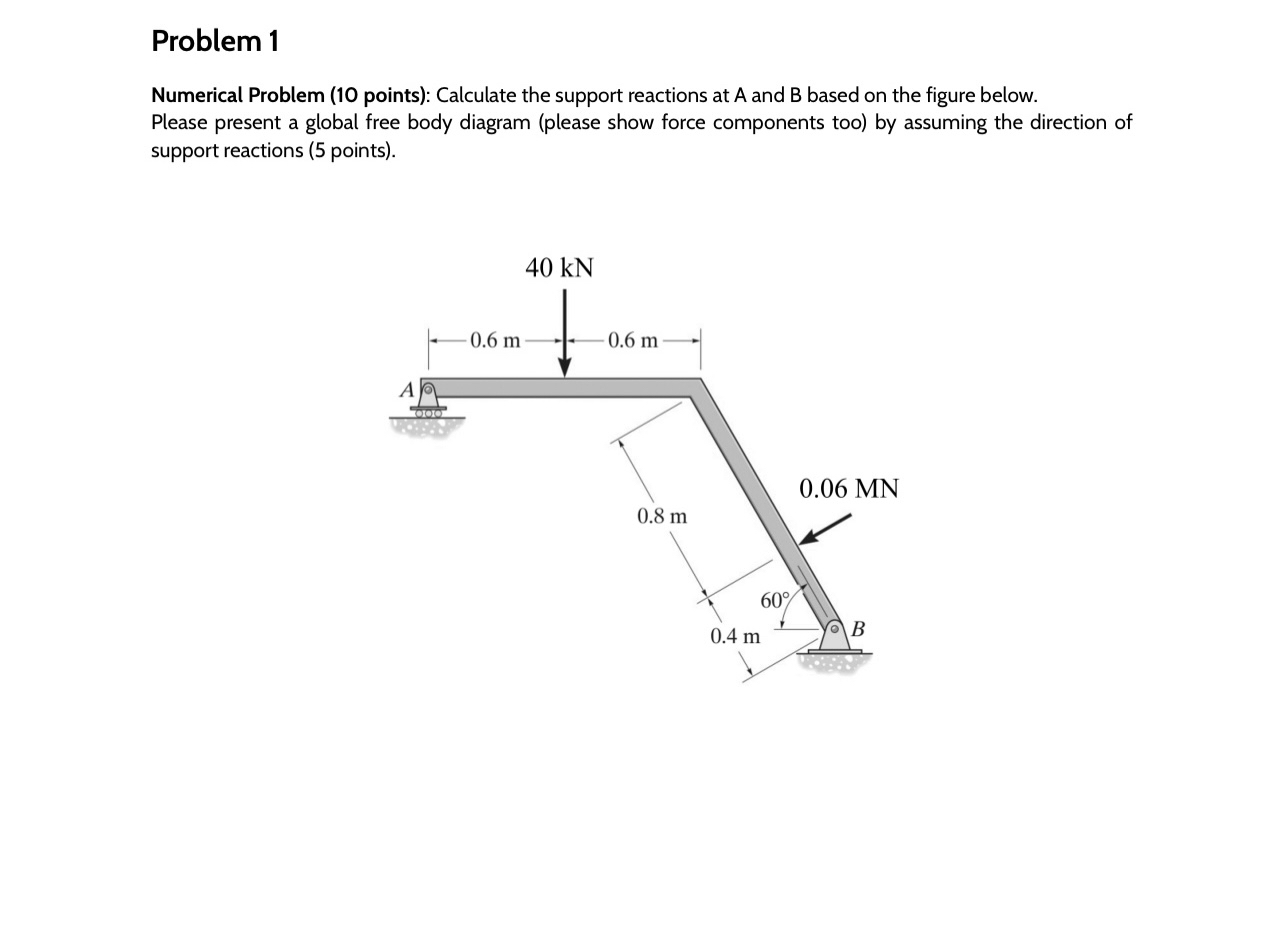

Numerical Problem (10 points): Calculate the support reactions at A and B based on the figure below.
Please present a global free body diagram (please show force components too) by assuming the direction of support reactions (5 points).
Problem 1 Numerical Problem ( 1 0 points ) :

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
