Question: Problem # 1 Rotational system: ODE and State Space Modeling Considering the following system, where both springs and dampers are rotational ones. Write out the

Problem #

1

Rotational system: ODE and State Space Modeling

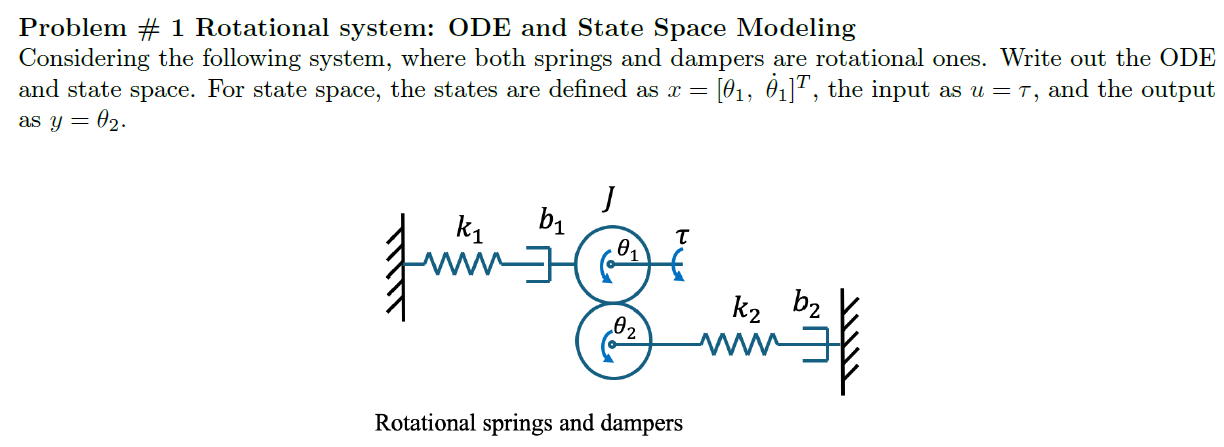

Considering the following system, where both springs and dampers are rotational ones. Write out the ODE and state space. For state space, the states are defined as

x = [_{1},_{1}^{}]^{T},

the input as

u =,

and the output as

y =_{2} .

Problem # 1 Rotational system: ODE and State

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
