Question: Problem 1: SPC - Penalty Method 3.10. Consider the bar in Fig. P3.10. Determine the nodal displacements, element stresses, and support reactions. 400 mm

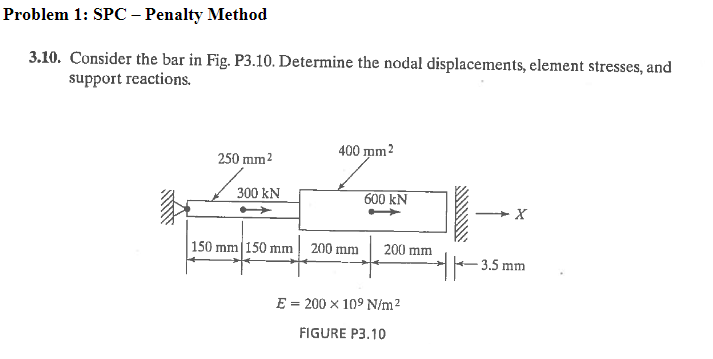

Problem 1: SPC - Penalty Method 3.10. Consider the bar in Fig. P3.10. Determine the nodal displacements, element stresses, and support reactions. 400 mm 250 mm 300 kN 600 kN 150 mm 150 mm 200 mm 200 mm 3.5 mm E = 200 x 109 N/m FIGURE P3.10

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
