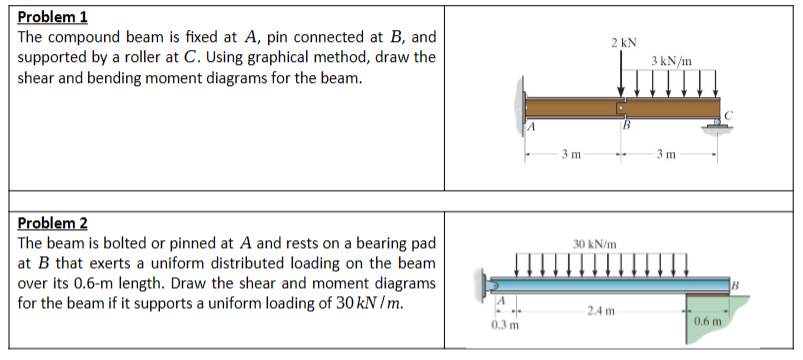

Problem $1$

The compound beam is fixed at A$,$ pin connected at B$,$ and

supported by a roller at C$.$ Using graphical method, draw the

shear and bending moment diagrams for the beam.

Problem $2$

The beam is bolted or pinned at A and rests on a bearing pad

at B that exerts a uniform distributed loading on the beam

over its $0\mathrm{.}6-$m length. Draw the shear and moment diagrams

for the beam if it supports a uniform loading of $30$ kN $/$m$.$
