Question: Problem 1 The fixed - free stepped bar shown in the Figure is formed of two segments, each of constant circular cross sections that are

Problem 1

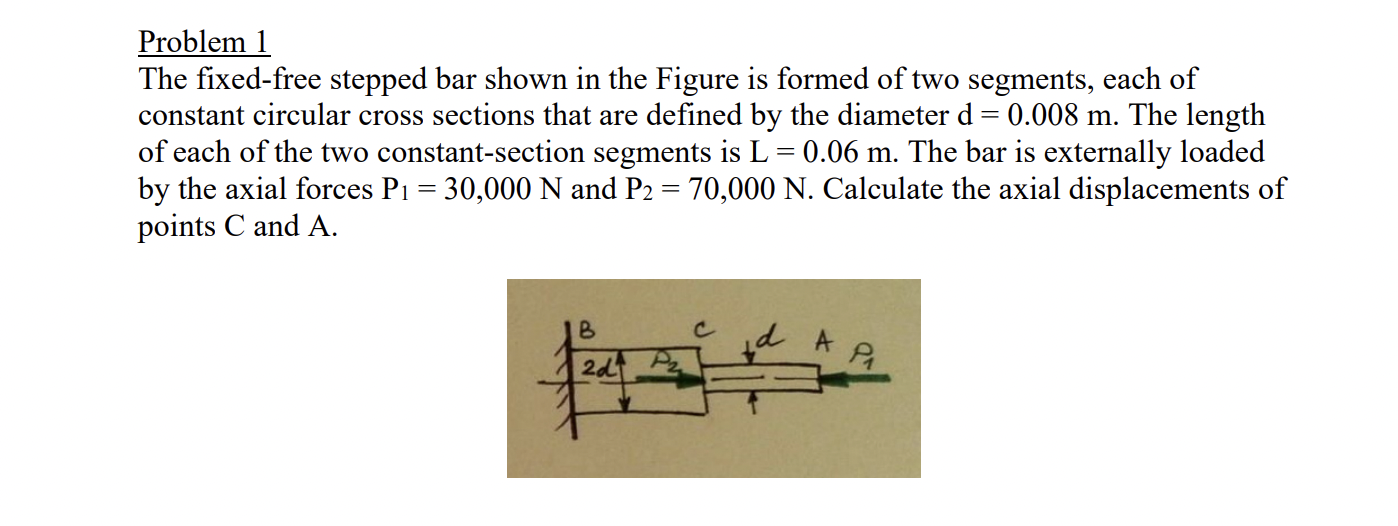

The fixed-free stepped bar shown in the Figure is formed of two segments, each of
constant circular cross sections that are defined by the diameter d=0.008m. The length
of each of the two constant-section segments is L=0.06m. The bar is externally loaded
by the axial forces P1=30,000N and P2=70,000N. Calculate the axial displacements of
points C and A .
Problem 1 The fixed - free stepped bar shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
