Question: Problem 1 The gate shown is rectangular and has dimensions height h = 6 m by width b = 4 m . The hinge is

Problem 1

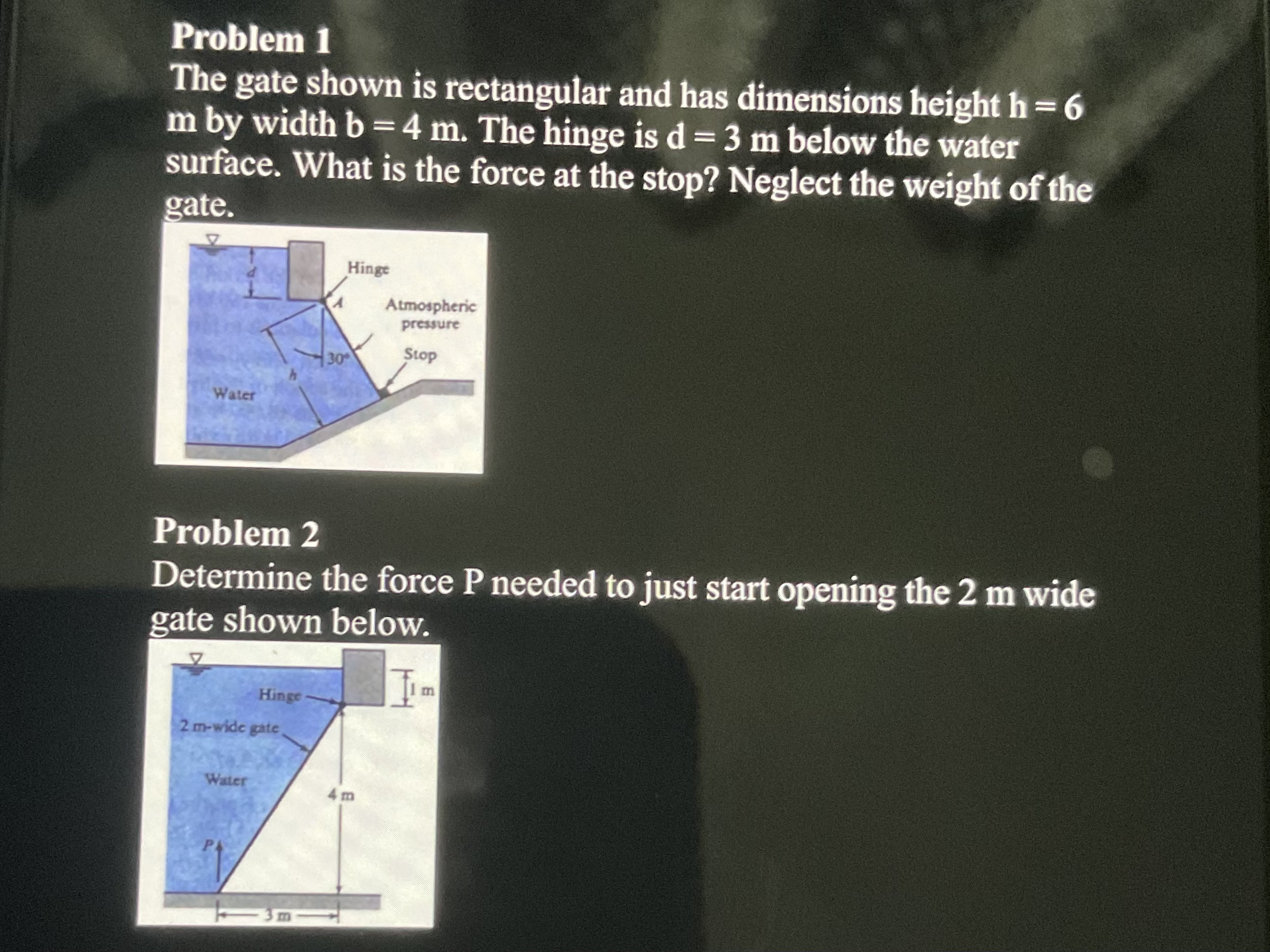

The gate shown is rectangular and has dimensions height h=6
m by width b=4m. The hinge is d=3m below the water
surface. What is the force at the stop? Neglect the weight of the
oate
Problem 2
Determine the force P needed to just start opening the 2m wide
gate shown helow
Problem 1 The gate shown is rectangular and has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
