Question: Problem #1 The switch in the circuit shown in Fig. 1 has been closed for a long time and is opened at t = 0.

Problem #1 The switch in the circuit shown in Fig. 1

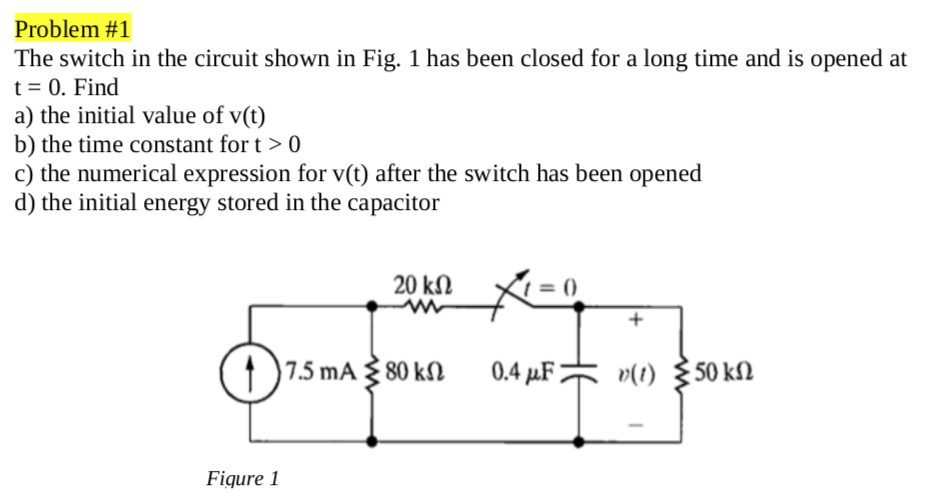

Problem #1 The switch in the circuit shown in Fig. 1 has been closed for a long time and is opened at t = 0. Find a) the initial value of v(t) b) the time constant fort>0 c) the numerical expression for v(t) after the switch has been opened d) the initial energy stored in the capacitor 20 k? Fiqure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
