Question: Problem 1 . The two - portal frame vault shown in Figure 1 comprises rigid frame members ABC and CDE, pinned together at C and

Problem 1.

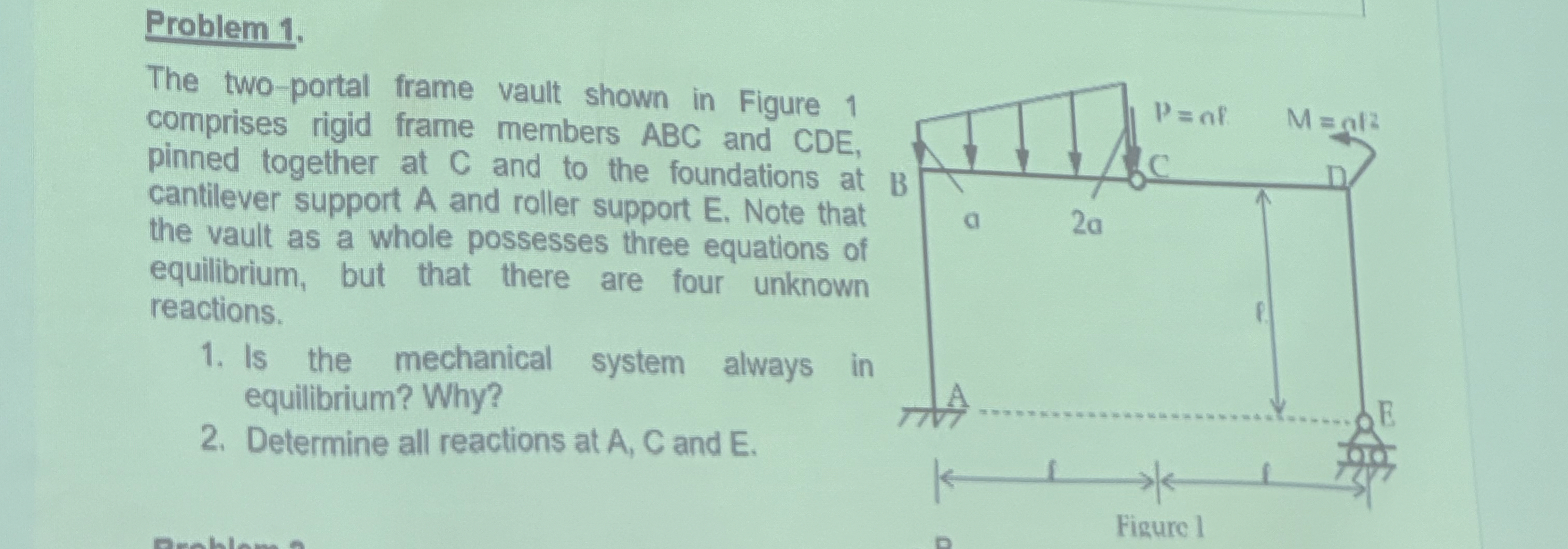

The two-portal frame vault shown in Figure 1 comprises rigid frame members ABC and CDE, pinned together at C and to the foundations at cantilever support A and roller support E. Note that the vault as a whole possesses three equations of equilibrium, but that there are four unknown reactions.
Is the mechanical system always in equilibrium? Why?
Determine all reactions at A,C and E.
Figure 1
Problem 1 . The two - portal frame vault shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
