Question: Problem # 1 : Thevenin Equivalent Circuits under AC Steady - State Conditions and Maximum Average Power Transfer For the circuit shown below, the voltage

Problem #1: Thevenin Equivalent Circuits under AC Steady-State Conditions and Maximum Average Power Transfer

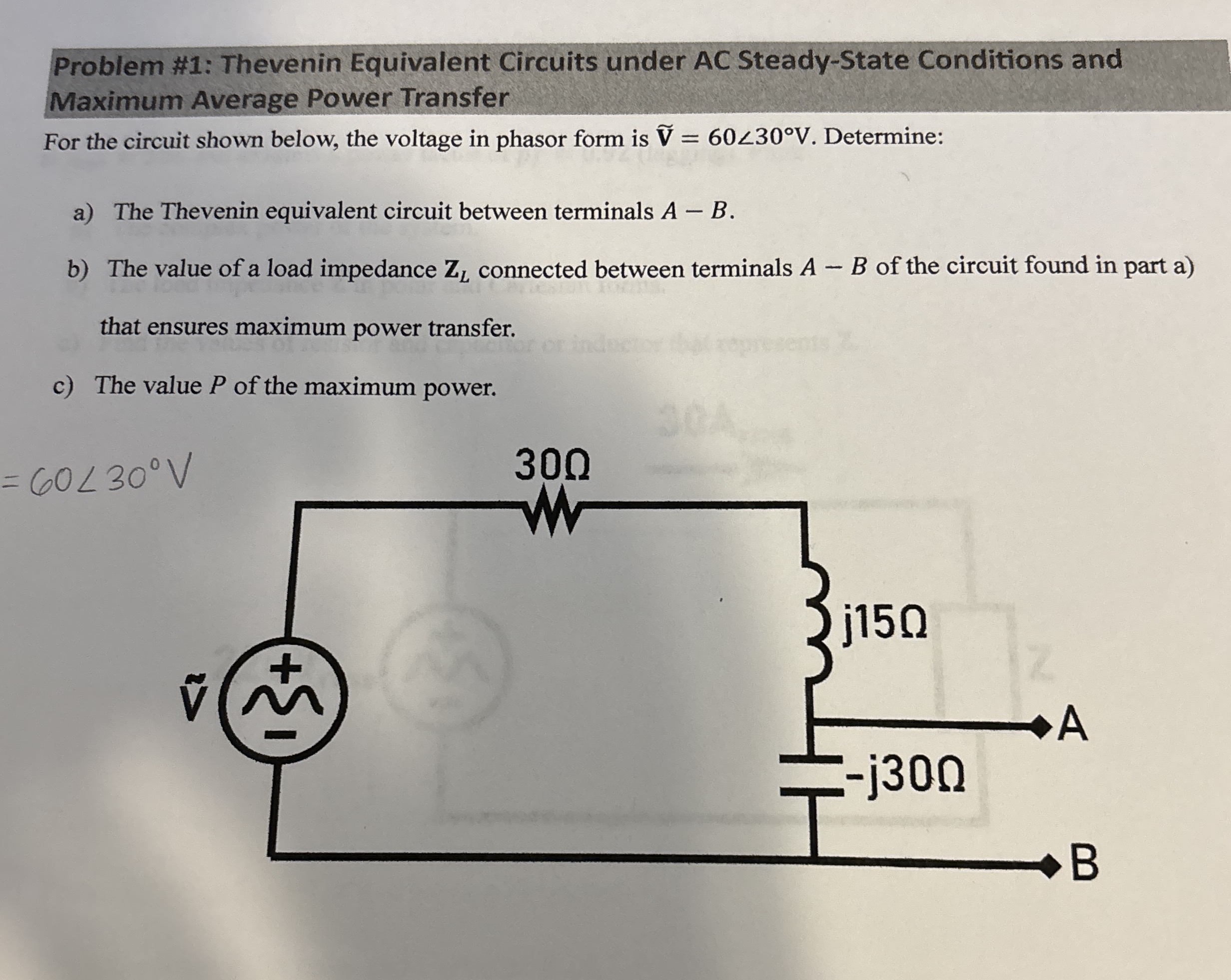

For the circuit shown below, the voltage in phasor form is widetilde(v)=60?30V. Determine:
a) The Thevenin equivalent circuit between terminals A-B.
b) The value of a load impedance ZL connected between terminals A-B of the circuit found in part a) that ensures maximum power transfer.
c) The value P of the maximum power.
