Question: Problem 1 Using the moment - area method, determine the deflection at A and the slope at C in terms of EI . El is

Problem 1

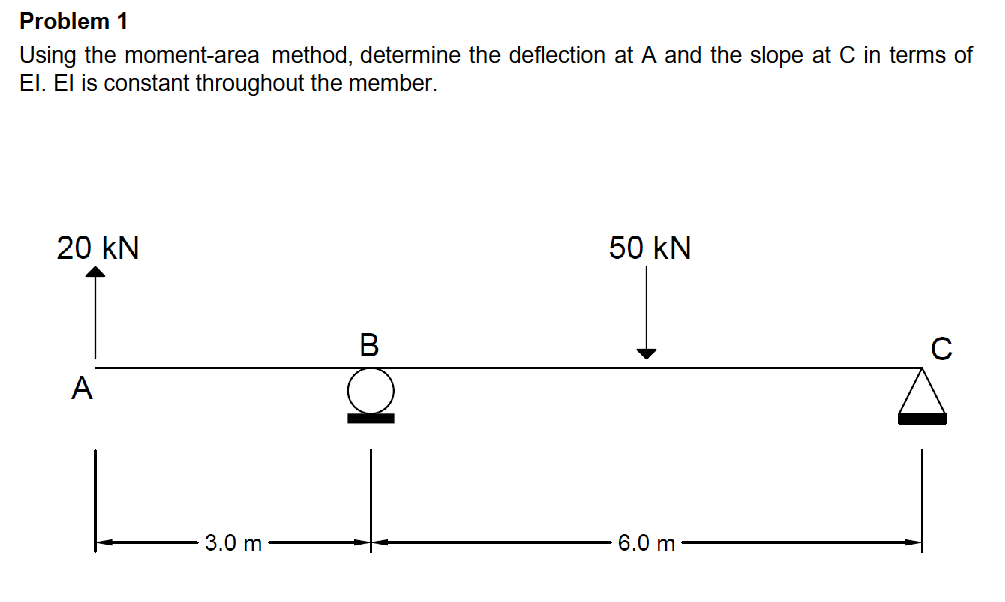

Using the moment-area method, determine the deflection at A and the slope at C in terms of EI. El is constant throughout the member.
Problem 1 Using the moment - area method,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
