Question: Problem 1 . What is the net torque ( magnitude and direction ) acting on the wheel and axle shown in the figure on the

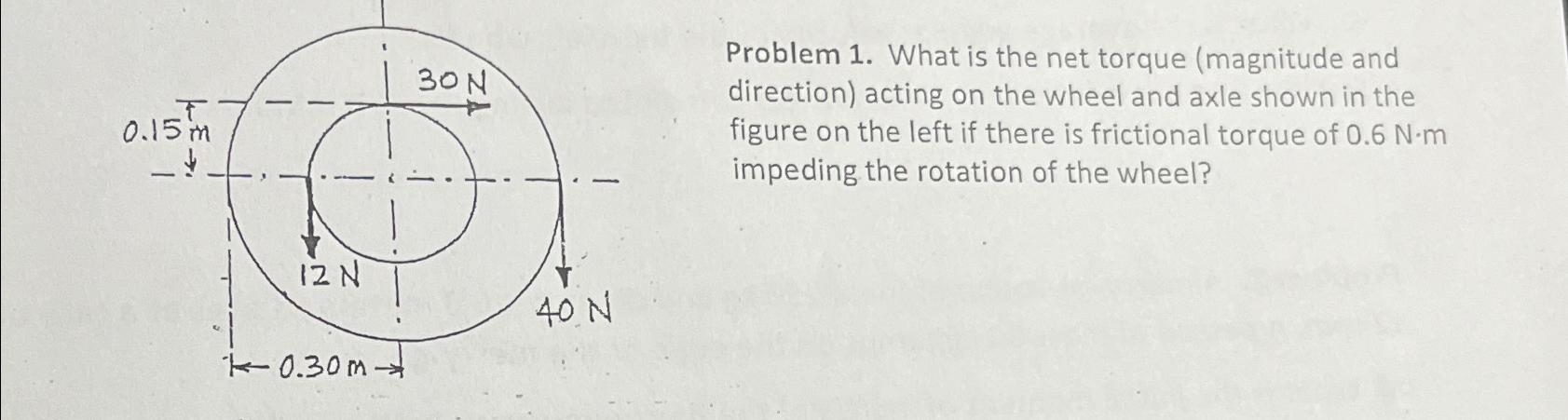

Problem 1. What is the net torque (magnitude and direction) acting on the wheel and axle shown in the figure on the left if there is frictional torque of 0.6N*m impeding the rotation of the wheel?
Problem 1. What is the net torque (magnitude and direction) acting

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
