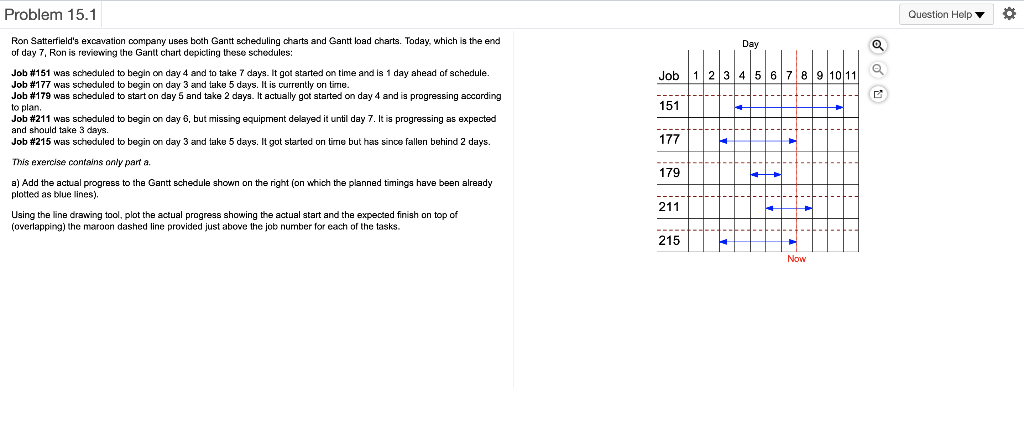

Problem 15.1 Question Help 0 Day Job 1 2 3 4 5 6 7 8 9 10 11 151 Ron Satterfield's excavation company uses both Gantt scheduling charts and Gantt load charts. Today, which is the end of day 7, Ron is reviewing the Gantt chart depicting these schedules: Job #151 was scheduled to begin on day 4 and to take 7 days. It got started on time and is 1 day ahead of schedule. Job #177 was scheduled to begin on day 3 and take 5 days. It is currently on time Job #179 was scheduled to start on day 5 and take 2 days. It actually got started on day 4 and is progressing according to plan, and should take 3 days. Job #211 was scheduled to begin on day 6, but missing equipment delayed it until day 7. It is progressing as expected Job #215 was scheduled to begin on day 3 and take 5 days. It got started on time but has since fallen behind 2 days. This exercise contains only part a. a) Add the actual progress to the Gantt schedule shown on the right on which the planned timings have been already plotted as blue lines), Using the line drawing tool, plot the actual progress showing the actual start and the expected finish on top of (overlapping) the maroon dashed line provided just above the job number for each of the tasks. 177 179 ---- 211 215 Now
