Question: Problem 1a. Using the displacement method determine (by hand calculation): a. the nodal displacements; b. the reactions; c. the internal forces in the elements;

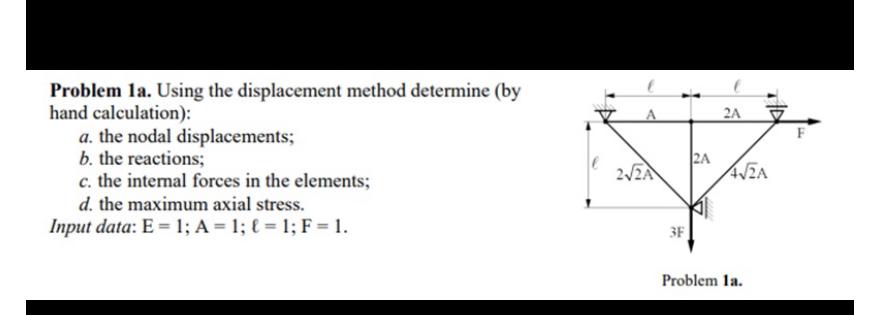

Problem 1a. Using the displacement method determine (by hand calculation): a. the nodal displacements; b. the reactions; c. the internal forces in the elements; d. the maximum axial stress. Input data: E 1; A=1; 1; F = 1. 1 2A 2A 22A 42A 3F Problem 1a.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
