Question: Problem 2 ( 1 0 points ) The L - shaped member ABC is subjected to a couple and three forces as shown in the

Problem 2(10 points)

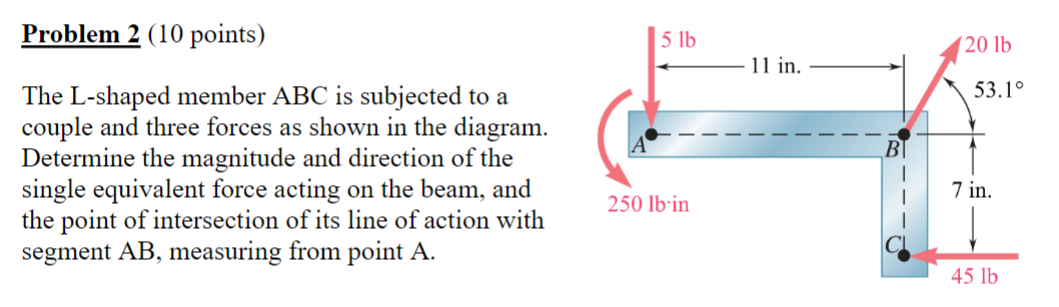

The L -shaped member ABC is subjected to a
couple and three forces as shown in the diagram.
Determine the magnitude and direction of the
single equivalent force acting on the beam, and
the point of intersection of its line of action with
segment AB , measuring from point A .
Problem 2 ( 1 0 points ) The L - shaped member

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
