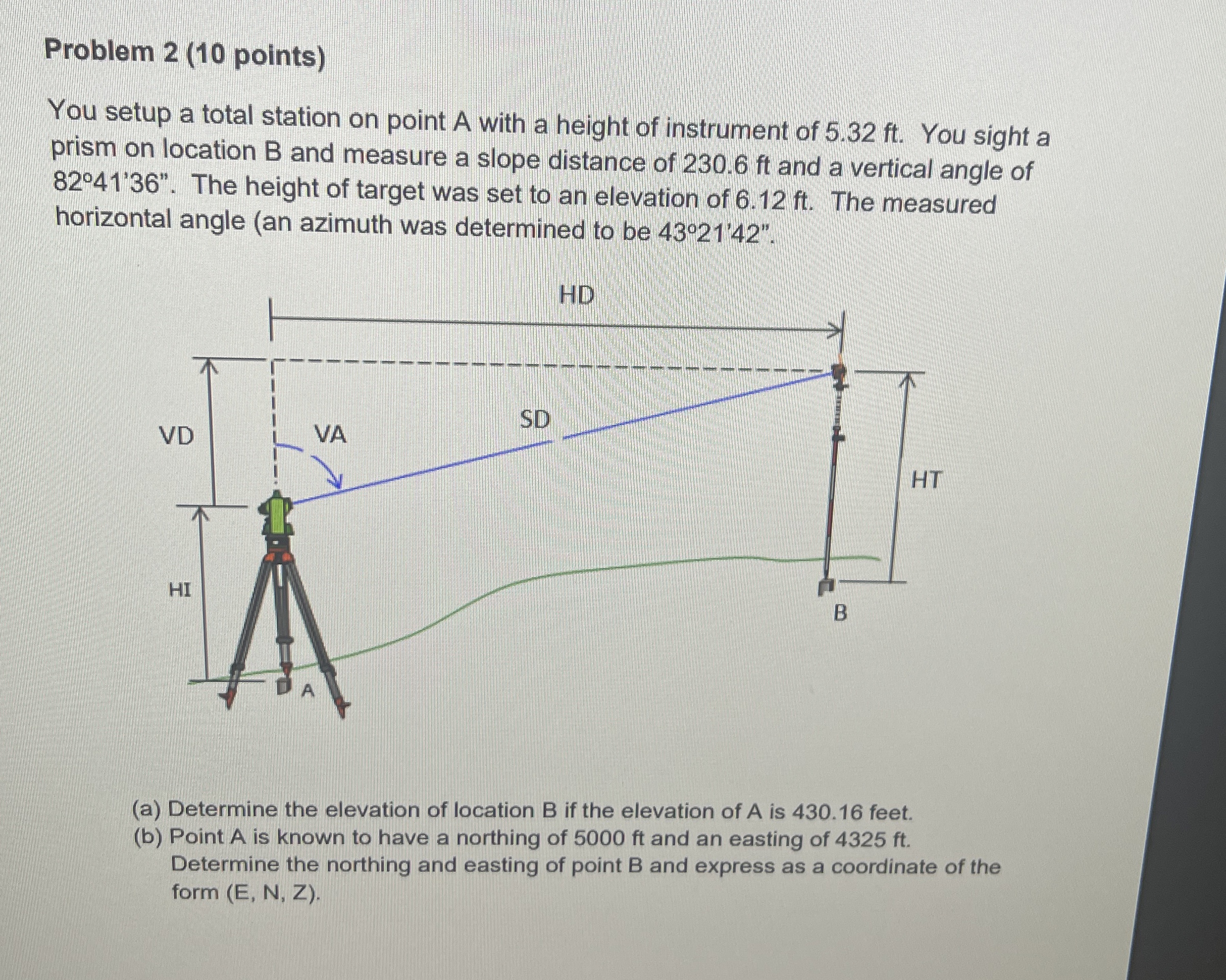

Problem 2(10 points)
You setup a total station on point A with a height of instrument of 5.32ft. You sight a prism on location B and measure a slope distance of 230.6 ft and a vertical angle of 8241'36''. The height of target was set to an elevation of 6.12 ft . The measured horizontal angle (an azimuth was determined to be 4321'42''.
(a) Determine the elevation of location B if the elevation of A is 430.16 feet.
(b) Point A is known to have a northing of 5000 ft and an easting of 4325 ft . Determine the northing and easting of point B and express as a coordinate of the form (E, N, Z).
