Question: Problem 2 ( 1 0 pt ) A small dam of height h is constructed of vertical wood beams AB of thickness t , as

Problem 2(10pt)

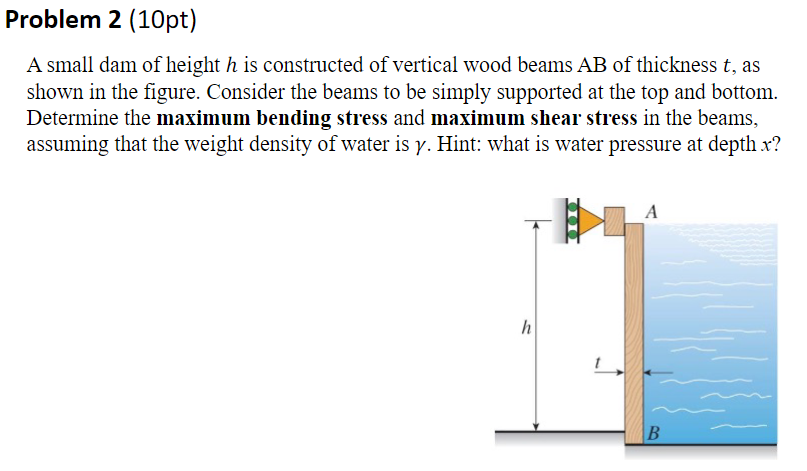

A small dam of height h is constructed of vertical wood beams AB of thickness t, as
shown in the figure. Consider the beams to be simply supported at the top and bottom.
Determine the maximum bending stress and maximum shear stress in the beams,
assuming that the weight density of water is . Hint: what is water pressure at depth x?
Problem 2 ( 1 0 pt ) A small dam of height h is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
