Question: Problem 2 ( 2 0 marks ) The figure below illustrates the connection of a cylinder head to a pressure vessel using 1 4 bolts

Problem 2(20 marks)

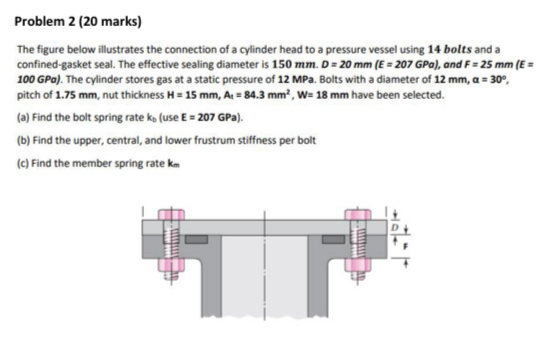

The figure below illustrates the connection of a cylinder head to a pressure vessel using 14 bolts and a confined-gasket seal. The effective sealing diameter is
Problem 2 ( 2 0 marks ) The figure below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
