Question: Problem # 2 ( 2 0 points ) Calculate the natural frequency and damping ratio for the system in Figure 1 . Assume that no

Problem #2(20 points)

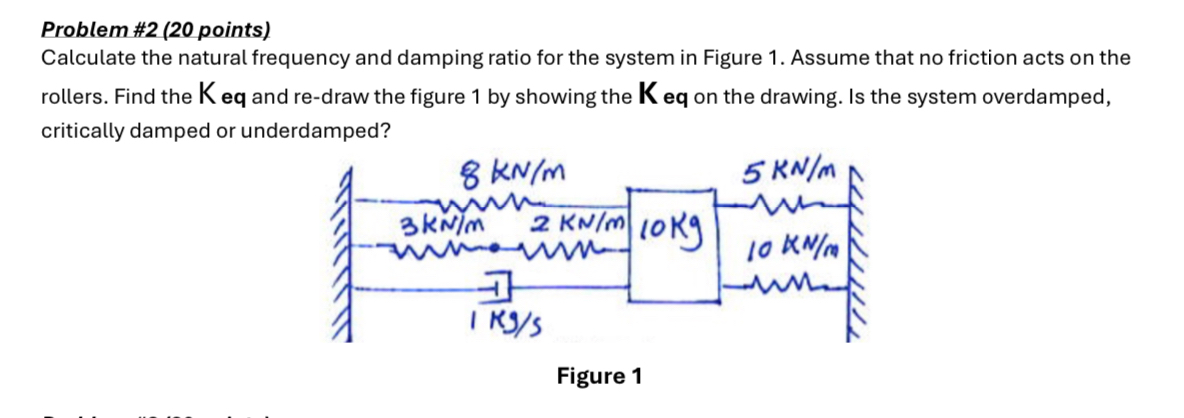

Calculate the natural frequency and damping ratio for the system in Figure 1. Assume that no friction acts on the rollers. Find the Keq and re-draw the figure 1 by showing the K eq on the drawing. Is the system overdamped, critically damped or underdamped?
Problem # 2 ( 2 0 points ) Calculate the natural

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
