Question: Problem 2 : 2 0 points Determine the reactions at the supports then draw the shear and moment diagrams. EI is constant. Answers: A y

Problem 2: 20 points

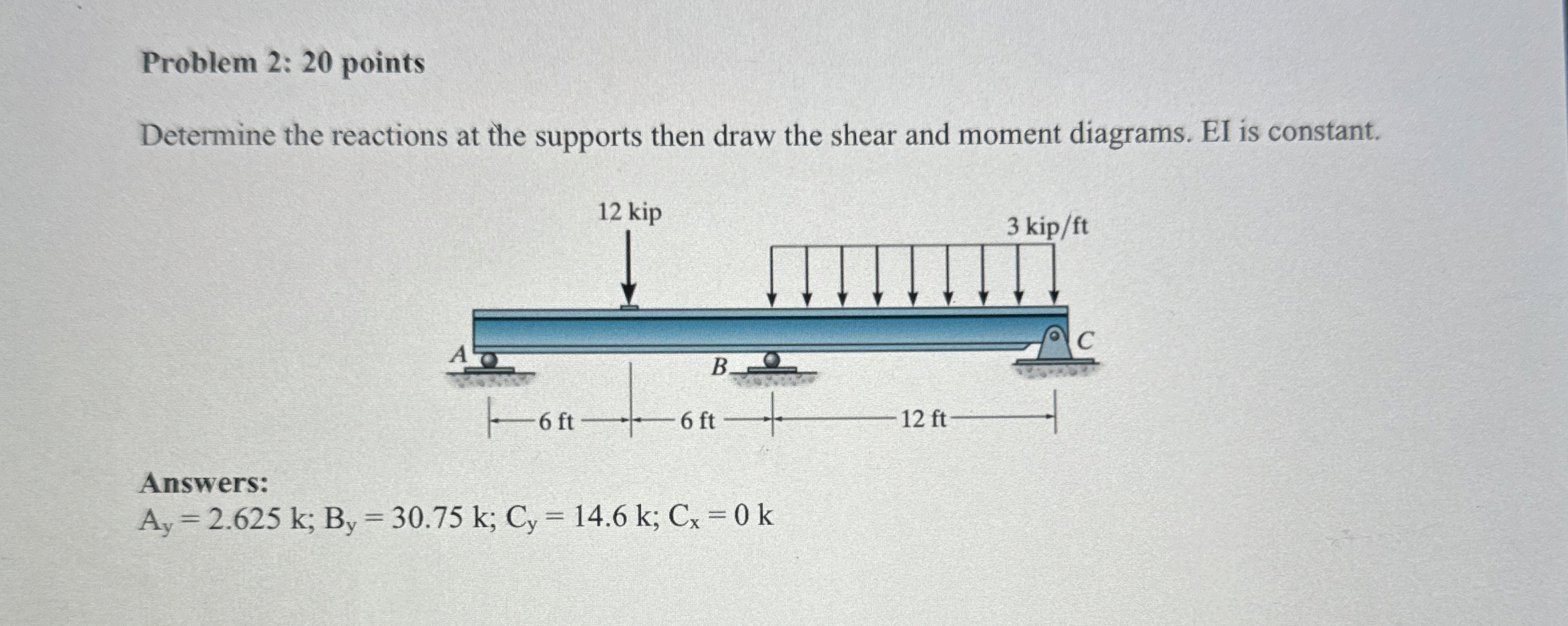

Determine the reactions at the supports then draw the shear and moment diagrams. EI is constant.
Answers:
Ay=2.625k;By=30.75k;Cy=14.6k;Cx=0k
Problem 2 : 2 0 points Determine the reactions at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
