Question: Problem 2 : ( 2 0 Points ) Gate AB is a quarter - circle 3 m wide and hinged at B . Find the

Problem 2: (20 Points)

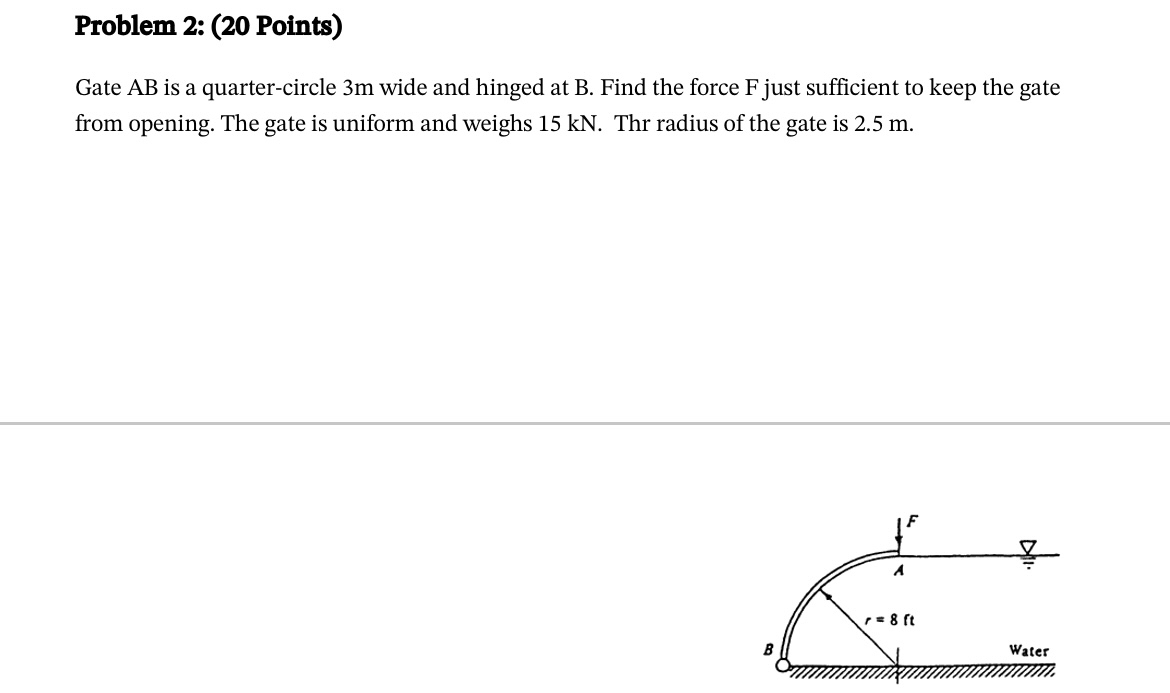

Gate AB is a quarter-circle 3 m wide and hinged at B . Find the force F just sufficient to keep the gate from opening. The gate is uniform and weighs 15 kN . Thr radius of the gate is 2.5 m .
Problem 2 : ( 2 0 Points ) Gate AB is a quarter -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
