Question: Problem # 2 ( 2 2 + 2 + 2 = 6 pts ) Minimum number of teeth of pinion and gears needs to be

Problem # 2(22+2+2=6 pts)

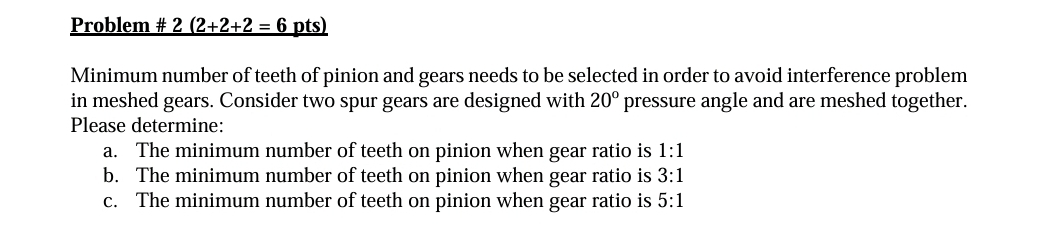

Minimum number of teeth of pinion and gears needs to be selected in order to avoid interference problem in meshed gears. Consider two spur gears are designed with 20 pressure angle and are meshed together. Please determine:
a. The minimum number of teeth on pinion when gear ratio is 1:1
b. The minimum number of teeth on pinion when gear ratio is 3:1
c. The minimum number of teeth on pinion when gear ratio is 5:1
Problem # 2 ( 2 2 + 2 + 2 = 6 pts ) Minimum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
