Question: Problem 2 ( 2 5 points ) We are given the truss structure in Fig. 2 , for which we know that it is stable

Problem 2(25 points)

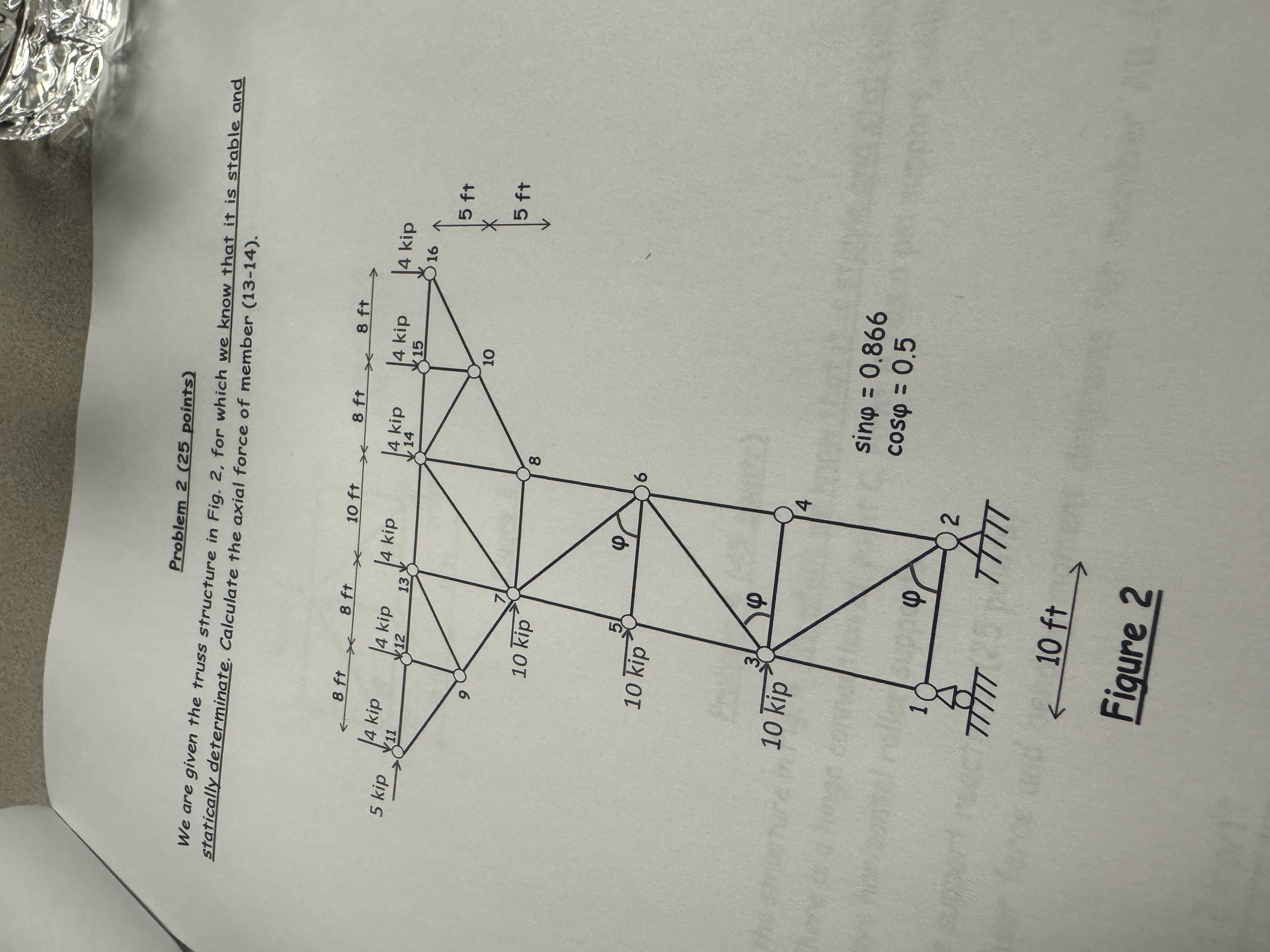

We are given the truss structure in Fig. 2, for which we know that it is stable and
statically determinate. Calculate the axial force of member (13-14).
Figure?
Problem 2 ( 2 5 points ) We are given the truss

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
